Build
| Frame |

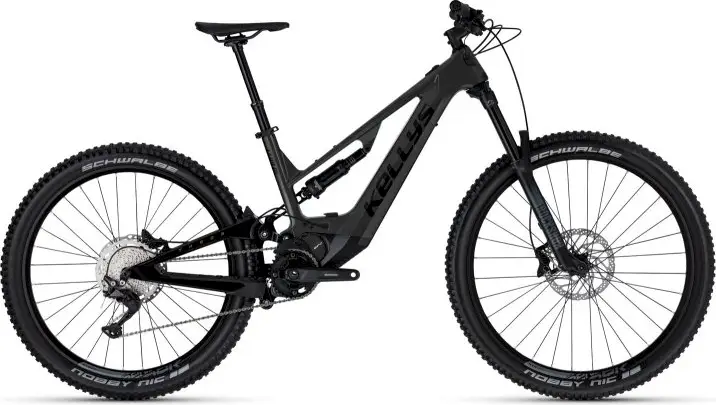

KELLYS THEOS 2024 F100 Carbon-Aramid Composite / Designed & manufactured in EUROPE / Think Link suspension system, 140 mm rear travel, integrated removable battery, 1.8 tapered HT, post mount 203 mm, mullet 29″ / 27.5″+ wheelset, 12×148 mm Boost thru axle |
|---|---|
| Fork |
ROCK SHOX 35 GOLD RL (29) Boost, 150 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle Travel:Â 150mm Spring Type:Â Air |
| Shock |
ROCK SHOX Deluxe Select R, DebonAir (210×55 mm) Travel:Â 140mm |
| Stem |
KLS Alm/En 50 – diam 28.6 mm / bar bore 31.8 mm / length 60 mm |
| Handlebar |
KLS Alm/En 70 RiseBar – diam 31.8 mm / rise 25 mm / rka 760 mm |
| Saddle |
fizi:k Taiga, S-alloy rails |
| Seatpost |
KS Rage-i Remote Telescopic – diam 30.9 mm / length 442 mm, travel 150 mm Type:Â Dropper |
| Pedals |
plastic |
| Grips |
KLS Poison OneLockon |
Groupset
| Rear Derailleur |
SHIMANO Deore M5120 (direct mount) |
|---|---|
| Crank |
SHIMANO EM600 (34T) – length 170 mm |
| Shifters |
SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV) |
| Cassette |
SHIMANO CS-M4100-10 (11-46T) |
| Chain |
KMC e10T (120 links) |
| Brakes |
SHIMANO MT420 Hydraulic Disc Type:Â Hydraulic Disc |
| Brake Levers |
SHIMANO Deore BL-M4100 |
Wheels
| Rims |
KLS Bender Disc 622×38 front / 584×38 rear (32 holes) |
|---|---|
| Spokes |
stainless steel black |
| Front Hub |
SHIMANO MT400-B Disc Center Lock (32 holes) |
| Rear Hub |
SHIMANO MT400-B Disc Center Lock (32 holes) |
| Tires |
Front: SCHWALBE Nobby Nic Performance 65-622 (29×2.60) ADDIX, Rear: SCHWALBE Nobby Nic Performance 70-584 (27.5×2.80) ADDIX |
| Disc Rotors |
203 mm front / 203 mm rear |
Electric Components
| Motor |
SHIMANO EP800, 85 Nm, 36 V |
|---|---|
| Battery |
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ |
| Display |
SHIMANO SC-E5003 cycle computer with assist switch |
