Build
| Frame |

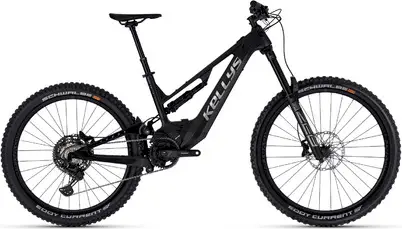

KELLYS THEOS F-series – Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER by Rein4ced assembled by advanced robotic manufacturing / Designed & manufactured in EUROPE / Think Link suspension system, 170 mm rear travel, integrated removable battery, 1.8 tapered HT, post mount 203 mm, mullet 29″ / 27.5″+ wheelset, 12×148 mm Boost thru axle |
|---|---|
| Fork |
ROCK SHOX Zeb Select+ (29) Boost, 180 mm, DebonAir / Charger 2.1 RC / Maxle Stealth 15 mm thru axle Travel:Â 180mm Spring Type:Â Air |
| Shock |
ROCK SHOX Super Deluxe Select R (230×65 mm) Travel:Â 170mm |
| Stem |
RACE FACE Aeffect R 35 – diam 28.6 mm / bar bore 35 mm / 0 / length 50 mm |
| Handlebar |
RACE FACE Chester 35 RiseBar – diam 35 mm / rise 35 mm / width 780 mm |
| Saddle |
fizi:k Taiga, S-alloy rails |
| Seatpost |
KS Rage-i Remote Telescopic – diam 30.9 mm / length 442 mm, travel 150 mm (M) / length 495 mm, travel 170 mm (L) Type:Â Dropper |
| Pedals |
plastic |
| Grips |
KLS Poison |
Groupset
| Rear Derailleur |
SHIMANO Deore XT Linkglide M8130 (direct mount) |
|---|---|
| Crank |
SHIMANO EM600 / SM-CRE80-12-B (38T) – length 170 mm |
| Shifters |
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV) |
| Cassette |
SHIMANO Linkglide CS-LG600-11 (11-50T) |
| Chain |
SHIMANO Linkglide CN-LG500 (122 links) |
| Brakes |
SHIMANO Deore XT M8120 Hydraulic Disc Type:Â Hydraulic Disc |
| Brake Levers |
SHIMANO Deore XT BL-M8100 |
Wheels
| Rims |
KLS Bender Disc (622×38 front / 584×38 rear / 32 holes) |
|---|---|
| Spokes |
stainless steel black |
| Front Hub |
SHIMANO Deore MT410-B / MT400-B Disc Center Lock (32 holes) |
| Rear Hub |
SHIMANO Deore MT410-B / MT400-B Disc Center Lock (32 holes) |
| Tires |
Front: SCHWALBE Eddy Current Evo SuperTrail 65-622 (29×2.60) Tubeless Easy, ADDIX Soft, folding, Rear: SCHWALBE Eddy Current Evo SuperGravity 70-584 (27.5×2.80) Tubeless Easy, ADDIX Soft, folding |
| Disc Rotors |
203 mm front / 203 mm rear |
Electric Components
| Motor |
SHIMANO EP800, 85 Nm, 36 V |
|---|---|
| Battery |
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ |
| Display |
SHIMANO SC-EM800 |
