Build
| Frame |

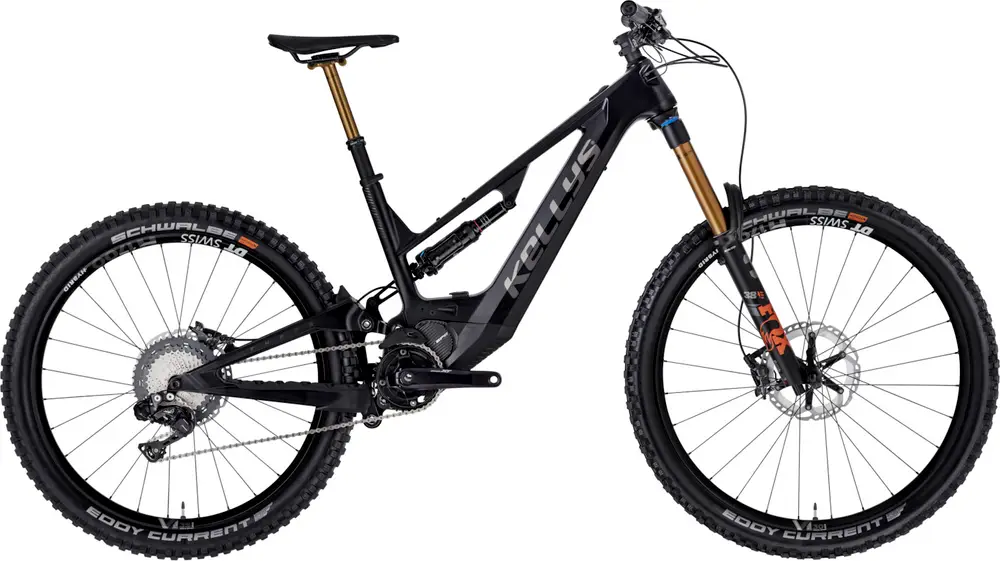

KELLYS THEOS F-series – Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER by Rein4ced assembled by advanced robotic manufacturing / Designed & manufactured in EUROPE / Think Link suspension system, 170 mm rear travel, integrated removable battery, 1.8 tapered HT, post mount 203 mm, mullet 29″ / 27.5″+ wheelset, 12×148 mm Boost thru axle BB Standard:Â BSA, 73mm, Threaded |
|---|---|
| Fork |
FOX 38 Float Factory, Kashima Coat (29) Boost, 180 mm, Float Evol / GRIP2 damper / 15QR thru axle Travel:Â 180mm Spring Type:Â Air |
| Shock |
ROCK SHOX Super Deluxe Ultimate, DebonAir / RCT / Open-Threshold (230×65 mm) Travel:Â 170mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Stem |
RACE FACE Aeffect R 35 – diam 28.6 mm / bar bore 35 mm / 0 / length 50 mm |
| Handlebar |
RACE FACE Aeffect R 35 RiseBar – diam 35 mm / rise 20 mm / width 780 mm |
| Saddle |
fizi:k Taiga, S-alloy rails |
| Seatpost |
FOX Transfer Factory Remote Telescopic, Kashima Coat – diam 30.9 mm / length 475 mm, travel 150 mm (M), 175 mm (L) Type:Â Dropper |
| Pedals |
plastic |
| Grips |
KLS Poison |
Groupset
| Rear Derailleur |
SHIMANO Deore XT Di2 M8050 (direct mount) |
|---|---|
| Crank |
SHIMANO Deore XT M8150 Hollowtech / CRE70 (34T) – length 170 mm |
| Shifters |
SHIMANO Deore XT Di2 Shift Switch SW-M8050-R Firebolt |
| Cassette |
SHIMANO CS-M8000-11 (11-46T) |
| Chain |
KMC e11T (120 links) |
| Brakes |
SHIMANO Deore XT M8120 Hydraulic Disc Type:Â Hydraulic Disc |
| Brake Levers |
SHIMANO Deore XT BL-M8100 |
Wheels
| Rims |
DT SWISS H 1700 622×30 Center Lock front / DT SWISS H 1700 Spline 584×35 Center Lock rear |
|---|---|
| Tires |
Front: SCHWALBE Eddy Current Evo SuperTrail 65-622 (29×2.60) Tubeless Easy, ADDIX Soft, folding, Rear: SCHWALBE Eddy Current Evo Super Gravity 70-584 (27.5×2.80) Tubeless Easy, ADDIX Soft, folding |
| Disc Rotors |
SHIMANO MT800 203 mm front / SHIMANO EM810 203 mm rear |
Electric Components
| Motor |
SHIMANO EP800, 85 Nm, 36 V |
|---|---|
| Battery |
KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ |
| Display |
SHIMANO SC-E7000 |
