Build
| Frame |

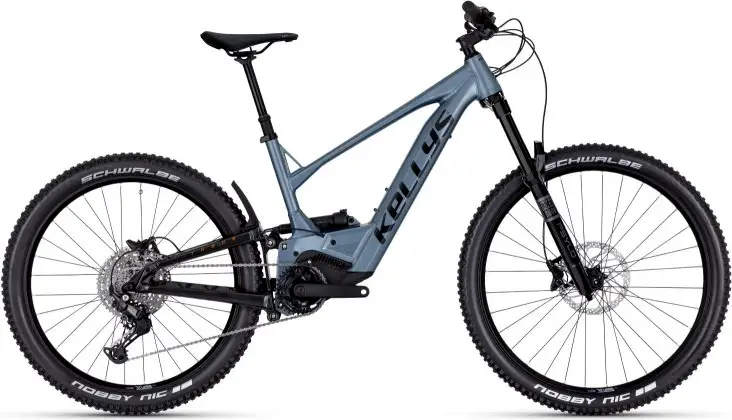

KELLYS THEOS R-series – advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link suspension system, 130 mm rear travel, integrated removable battery, 1.8″ tapered HT, post mount 203 mm, mullet 29″ / 27.5″+ wheelset, 12×148 mm Boost thru axle |
|---|---|
| Fork |
ROCK SHOX Psylo Silver RC (29″) Boost, 150 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle Travel:Â 150mm Spring Type:Â Air |
| Shock |
ROCK SHOX Deluxe Select R, DebonAir+ (210×55 mm) Travel:Â 130mm |
| Stem |
KLS CNC – diam 28.6 mm / bar bore 35 mm / length 35 mm |
| Handlebar |
KLS Alm/En RiseBar – diam 35 mm / rise 18 mm / width 780 mm |
| Saddle |
SELLE ROYAL SRX |
| Seatpost |
LIMOTEC A1 Remote Telescopic – diam 30.9 mm / length 445 mm, travel 150 mm Type:Â Dropper |
| Pedals |
plastic |
| Grips |
KLS Poison OneLockon |
Groupset
| Rear Derailleur |
SHIMANO Cues U6000 (direct mount) |
|---|---|
| Crank |
MIRANDA Miranda (34T) – length 170 mm |
| Shifters |
SHIMANO Cues SL-U6000-10R Rapidfire Plus |
| Cassette |
SHIMANO Linkglide CS-LG300-10 (11-48T) |
| Chain |
SHIMANO Linkglide CN-LG500 (122 links) |
| Brakes |
SHIMANO MT420 / MT410 hydraulic disc Type:Â Hydraulic Disc |
| Brake Levers |
SHIMANO Deore BL-M4100 |
Wheels
| Rims |
KLS ASESINO 30 Disc 622×30 / 584×30 (32 holes) |
|---|---|
| Spokes |
stainless steel black |
| Front Hub |
SHIMANO MT400-B Disc Center Lock (32 holes) |
| Rear Hub |
SHIMANO MT400-B Disc Center Lock (32 holes) |
| Tires |
Front: SCHWALBE Nobby Nic Performance 62-622 (29″x2.40) ADDIX, folding, Rear: SCHWALBE Nobby Nic Performance 62-584 (27.5″x2.40) ADDIX, folding |
| Disc Rotors |
SHIMANO RT30 203 mm front / 203 mm rear |
Electric Components
| Motor |
PANASONIC GX Ultimate, 95 Nm, 36 V |
|---|---|
| Battery |
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ |
| Display |
PANASONIC Bluetooth 5.0 navigation Side Color Display |
