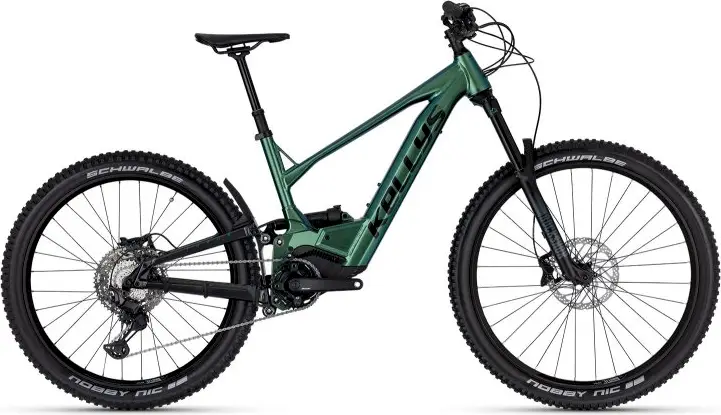

Kellys Theos R30 P Magic 29/27.5in 725 Wh Electric Bike 2024

KELLYS THEOS R-series – advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / Think Link suspension system, 130 mm rear travel, integrated removable battery, 1.8″ tapered HT, post mount 203 mm, mullet 29″ / 27.5″+ wheelset, 12×148 mm Boost thru axle

KLS Alm/En 50 – diam 28.6 mm / bar bore 31.8 mm / length 60 mm

KLS Alm/En 70 RiseBar – diam 31.8 mm / rise 25 mm / width 780 mm

fizi:k Taiga, S-alloy rails

plastic

KLS Poison OneLockon

SHIMANO Cues U6000 (direct mount)

MIRANDA Miranda (34T) – length 170 mm

SHIMANO Cues SL-U6000-10 Rapidfire Plus

SHIMANO Linkglide CS-LG400-10 (11-48T)

SHIMANO Linkglide CN-LG500 (122 links)

SHIMANO Deore BL-M4100

KLS Valor 3 Disc 622×30 front / 584×30 rear (32 holes)

stainless steel black

SHIMANO MT400-B Disc Center Lock (32 holes)

SHIMANO MT400-B Disc Center Lock (32 holes)

Front: SCHWALBE Nobby Nic Performance 60-622 (29″x2.35) Tubeless Easy, ADDIX, folding, Rear: SCHWALBE Nobby Nic Performance 65-584 (27.5″x2.60) Tubeless Easy, ADDIX, folding

SHIMANO RT30 203 mm front / EM300 203 mm rear

PANASONIC GX Ultimate, 95 Nm, 36 V

KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by KELLYS-BMZ

PANASONIC Bluetooth 5.0 navigation Side Color Display
