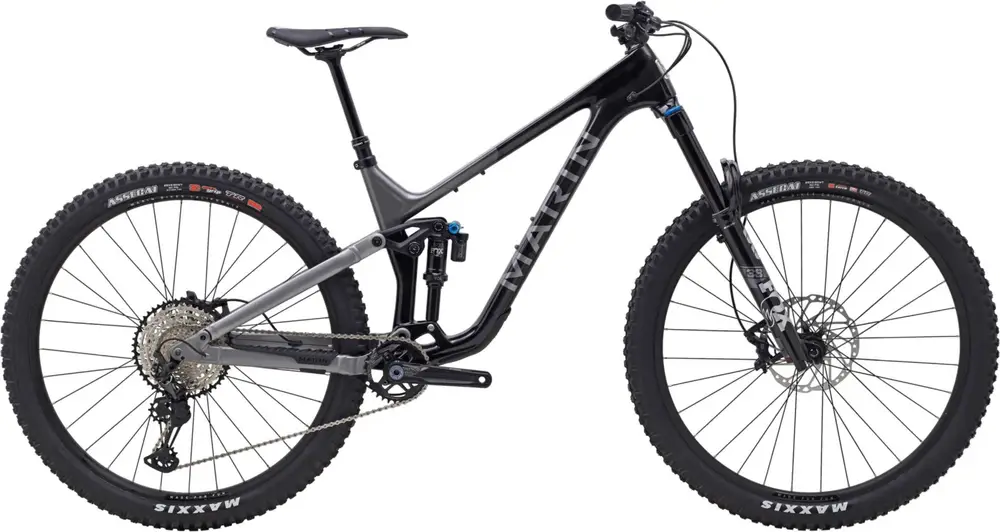

2023 Marin Alpine Trail Carbon 2 A 29″ carbon frame full suspension enduro bike with upper mid-range components.
Build
| Frame |
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs BB Standard: BSA, 68mm, Threaded Color: Gloss Black / Silver |
|---|---|
| Fork |
Fox 38 Performance Elite, 160mm Travel, 29″, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender |
| Rear Shock |
Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount |
| Bottom Bracket |
MEGAEVO BB, 73mm BSA Threaded |
| Headset |
FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” |
| Stem |
Race Face Affect R 35, 50mm Length |
| Handlebar |
Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back |
| Saddle |
Marin Trail Speed Concept Pro |
| Seatpost |
X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm |
| Pedals |
– |
| Grips |
Marin Single Clamp Locking |
Groupset
| Rear Derailleur |
Shimano XT 12-Speed, SGS |
|---|---|
| Front Derailleur |
– |
| Crank |
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Shifters |
Shimano SLX 12-Speed, I-Spec EV |
| Cassette |
Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Chain |
KMC X-12 Silver and Black |
| Brakes |
Shimano SLX, 4-Piston Hydraulic Disc Brake, 203mm Rotor |
| Brake Levers |
Shimano SLX Hydraulic, I-Spec EV |
Wheels
| Rims |
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible |
|---|---|
| Front Hub |
Shimano HF-MT410B, 110x15mm, Disc |
| Rear Hub |
Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body |
| Tires |
Front: Maxxis Assegai 29×2.5”, MaxxTerra, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29×2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible |
