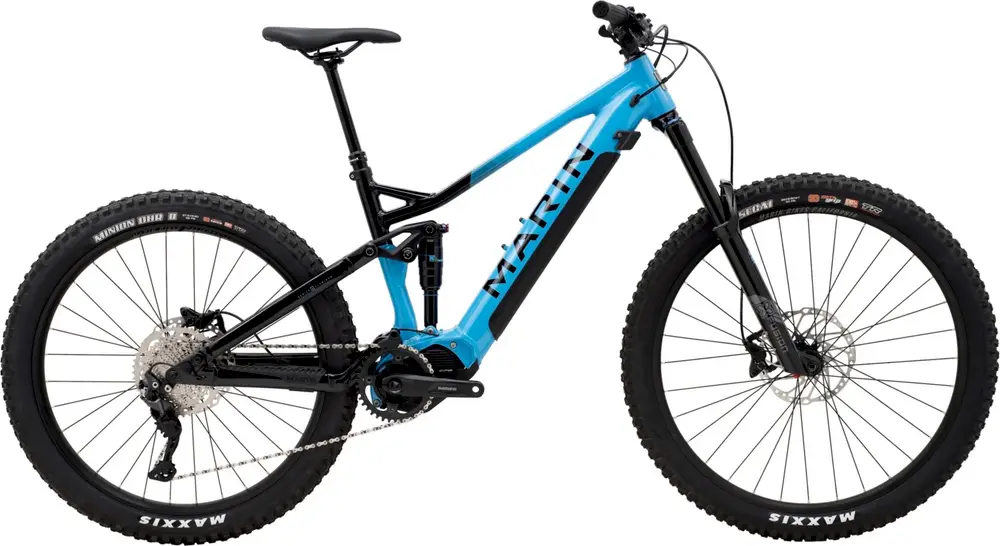

Marin Alpine Trail E Bike 2025
Compare Wishlist

Marin Alpine Trail E Bike 2025

Sku: 2025163317

US $2,799

Available in stock

*
Compare Wishlist
Brand:
Description

Marin Alpine Trail E Bike 2025 Overview

Build

Frame

Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Color: Gloss Blue / Black

Fork

X-Fusion Trace 36 RC, 160mm Travel, 29″, 110x15mm Bolt-On Axle, 44mm Offset

Travel: 160mm

Spring Type: Air

Headset

FSA No 57E, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2

Stem

Marin 3D Forged Alloy, 35mm

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back

Saddle

Marin eMTB Saddle

Seatpost

TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

Type: Dropper

Pedals

Marin MTB Plastic

Grips

Marin Grizzly Lock On

Groupset

Rear Derailleur

Shimano CUES 10-Speed

Crank

Shimano EM600, 160mm Length, 38t Chainring

Shifters

Shimano Deore, 10-Speed, I-Spec EV

Cassette

Shimano Deore 10-speed 11-46T

Chain

KMC X-10E, Silver

Brakes

TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick

Type: Hydraulic Disc

Brake Levers

TRP Slate EVO

Wheels

Rims

Front: Marin Aluminum Double Wall, 29″ Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5″ Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Front Hub

Shimano FH-TC500, 110x15mm, Centerlock, 32H

Rear Hub

Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

Tires

Front: Vee Tire Co. Attack HPL, 29×2.5″, Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5×2.8, TACKEE Compound, Tubeless Compatible

Electric Components

Motor

Shimano Steps EP6 Drive Unit, 250W, 85Nm

Battery

BT-EN805-L, Internal 504Wh

Recycling Program:  Call2Recycle

Display

Shimano SC-E600
