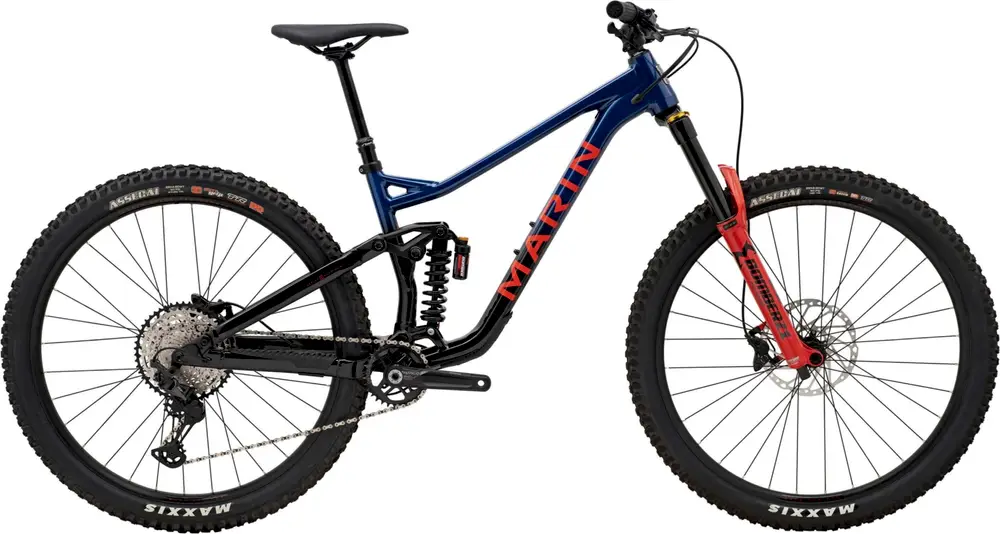

2023 Marin Alpine Trail XR A 29″ aluminum frame full suspension enduro bike with upper mid-range components.
Build
| Frame | Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs BB Standard: BSA, 68mm, Threaded Color: Gloss Blue / Black/red |
|---|---|
| Fork | Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110×15 Kabolt, 44mm Offset, Medium spring rate |
| Bottom Bracket | MEGAEVO BB, 73mm BSA Threaded |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” |
| Stem | Marin CNC Stem, 35mm Length, 35mm Bar Bore |
| Handlebar | Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Saddle | Marin Speed Concept |
| Seatpost | X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| Pedals | – |
| Grips | Marin Grizzy Lock On |
Groupset
| Rear Derailleur | Shimano XT 12-Speed, SGS |
|---|---|
| Front Derailleur | – |
| Crank | FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing |
| Shifters | Shimano SLX 12-Speed, I-Spec EV |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Chain | KMC X-12 Silver and Black |
| Brakes | Hydraulic Disc |
| Brake Levers | Shimano BL-M4100, I-Spec EV Compatible |
Wheels
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible |
|---|---|
| Front Hub | Shimano HF-MT410B, 110x15mm, Centerlock |
| Rear Hub | Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body |
| Tires | Maxxis Assegai 29×2.5″, MAXX TERRA, EXO+, Tubeless Compatible |
