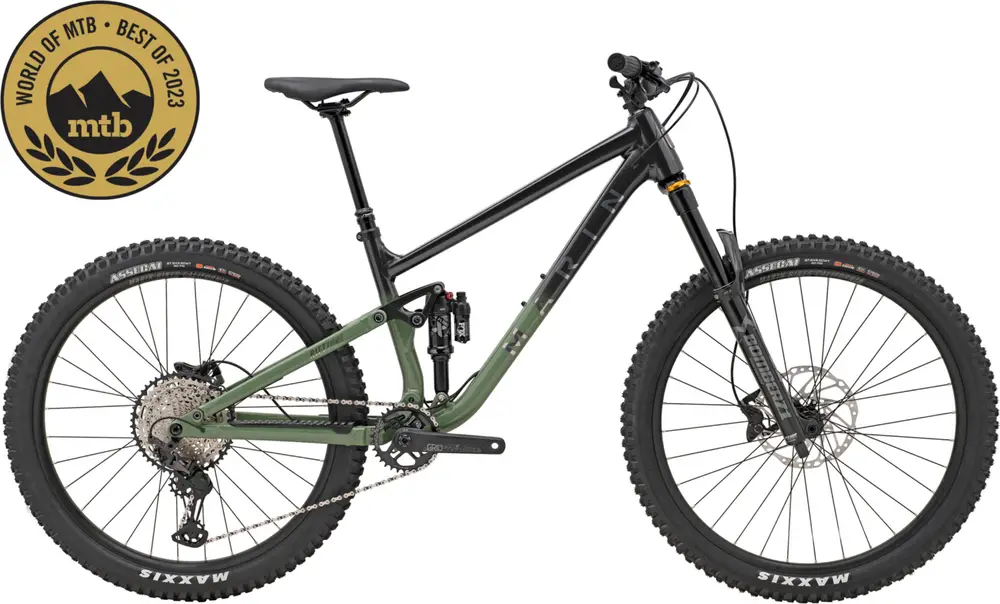

2023 Marin Rift Zone 27.5″ XR A 27.5″ aluminum frame full suspension trail bike with upper mid-range components.
Build
| Frame |
All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs BB Standard: BSA, 73mm, Threaded Color: Green / Black/silver |
|---|---|
| Fork |
Marzocchi Bomber Z1 27.5″, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset |
| Bottom Bracket |
Mego EXO 73mm BSA |
| Headset |
FSA No 57, Sealed Cartridge Bearings, 1 1/8″ x 1 1/2” |
| Stem |
Marin 3D Forged Alloy, 35mm |
| Handlebar |
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Saddle |
Marin Speed Concept |
| Seatpost |
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm |
| Pedals |
– |
| Grips |
Marin Grizzly Lock On |
Groupset
| Rear Derailleur |
Shimano XT, 12-Speed, SGS |
|---|---|
| Front Derailleur |
– |
| Crank |
FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Shifters |
Shimano Deore, 12-Speed, SL-7100R, I-Spec EV |
| Cassette |
SunRace 12-speed, 11-51 |
| Chain |
KMC X-12 Silver and Black |
| Brakes |
Hydraulic Disc |
| Brake Levers |
Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible |
Wheels
| Rims |
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
|---|---|
| Front Hub |
Shimano HF-MT410B, 110x15mm, Centerlock |
| Rear Hub |
Forged Aluminum, 148x12mm, Centerlock Disc, 32H |
| Tires |
Maxxis Assegai, 27.5×2.5″, MAXX TERRA, EXO, Tubeless Compatible |
