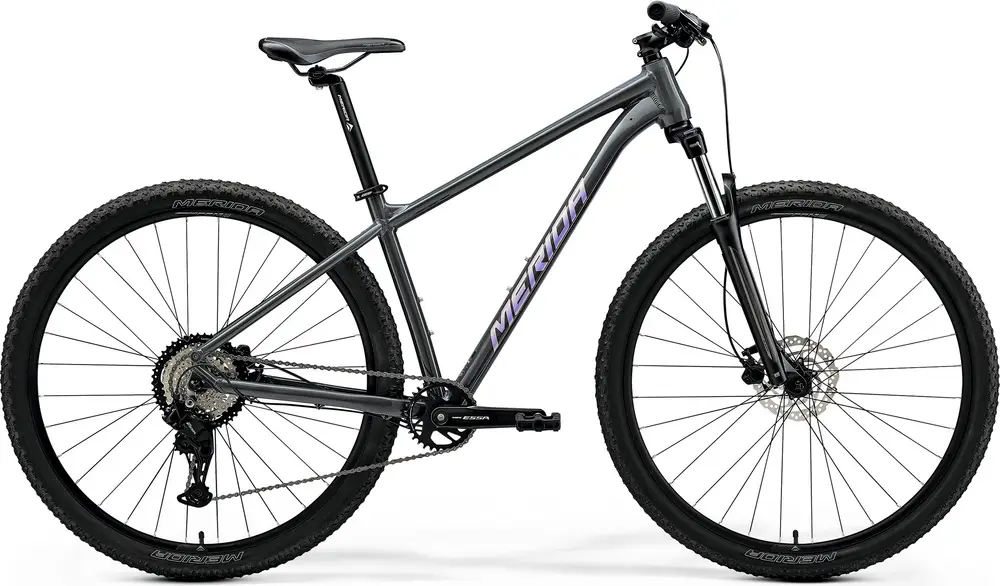

Merida BIG.NINE 20 Bike 2025
Compare Wishlist

Merida BIG.Nine 20 Bike 2025

Sku: 2025167783

US $427

Available in stock

*
Compare Wishlist
Brand:
Description

Merida BIG.NINE 20 Bike 2025 Overview

Build

Frame

BIG.NINE TFS IV, material: aluminum, 29×2.25″ max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded
Fork

Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout, 29×2,25″ max. wheelsize

Travel: 100mm

Spring Type: Coil
Bottom Bracket

BSA, 73mm, threaded
Headset

MERIDA M2345
Handlebar

MERIDA CC, material: aluminium, 690mm width, 15mm rise
Saddle

MERIDA Sport comfort
Seatpost

MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

Type: Rigid
Pedals

VP VPE-891

Groupset

Rear Derailleur

Shimano ESSA RD-U2000-8, GS
Crank

Shimano ESSA FC-U2001 32 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up
Shifters

Shimano ESSA SL-315-8R
Cassette

Shimano CS-HG400-8, 11-45 teeth, 8 speed
Chain

KMC Z8.3
Brakes

Tektro HD-M275, hydraulic brake

Type: Hydraulic Disc

Wheels

Rims

MERIDA CC, 17mm inner width, material: aluminium
Spokes

Black steel
Front Hub

Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub

Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Tires

MERIDA K1080, 29×2.2″, wire
Disc Rotors

Shimano RT10, 160 mm
