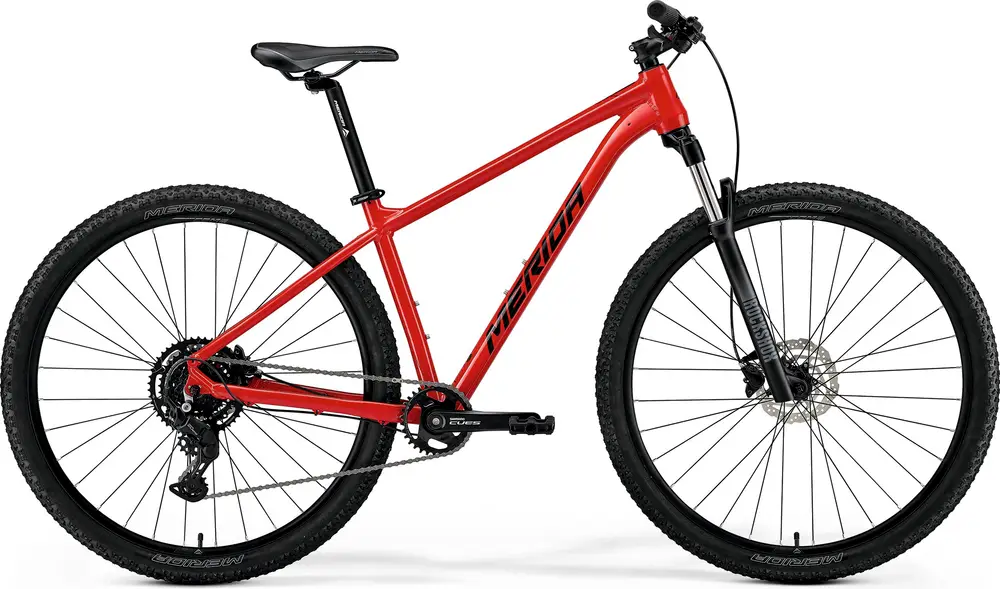

Merida BIG.NINE 80 Bike 2025
Compare Wishlist

Merida BIG.Nine 80 Bike 2025

Sku: 2025168253

US $553

Available in stock

*
Compare Wishlist
Brand:
Description

Merida BIG.NINE 80 Bike 2025 Overview

Build

Frame

BIG.NINE TFS IV, material: aluminum, 29×2.25″ max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded
Fork

Rock Shox Judy TK, Coil, 100mm suspension travel Lockout, 46mm fork offset, 29×2.25″ max. wheelsize

Travel: 100mm

Spring Type: Coil
Bottom Bracket

BSA, 73mm, threaded
Headset

MERIDA M2345
Handlebar

MERIDA CC, material: aluminium, 690mm width, 15mm rise
Saddle

MERIDA Sport comfort
Seatpost

MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium

Type: Rigid
Pedals

VP VPE-891

Groupset

Rear Derailleur

Shimano CUES U4000-9, GS
Crank

Shimano CUES U4000, 32 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up
Shifters

Shimano CUES U4000-9R
Cassette

Shimano CS-LG300-9, 11-46 teeth, 9 speed
Chain

KMC xGlide
Brakes

Shimano MT200, hydraulic brake, 2 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA CC, 17mm inner width, material: aluminium
Spokes

Black steel
Front Hub

Shimano HB-TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub

Shimano FH-TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Tires

MERIDA K1080, 29×2.2″, wire
Disc Rotors

Shimano RT10, 160 mm
