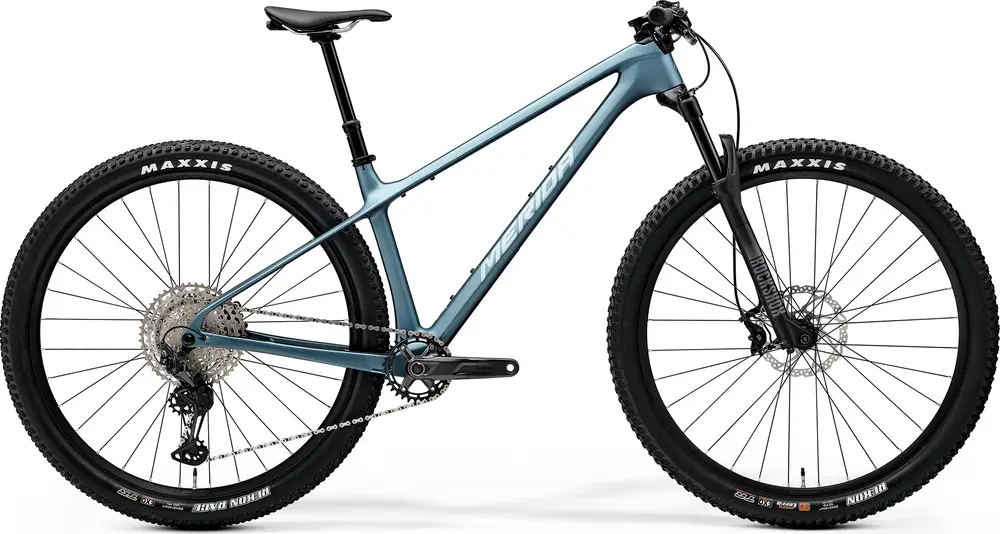

Merida BIG.NINE TR 5000 Bike 2025
Compare Wishlist

Merida BIG.Nine TR 5000 Bike 2025

Sku: 2025163997

US $1,540

Available in stock

*
Compare Wishlist
Brand:
Description

Merida BIG.NINE TR 5000 Bike 2025 Overview

Build

Frame

BIG.NINE TR CF3 III, material: carbon, 29×2.4″ max wheelsize, 148x12mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded
Fork

Rock Shox Judy Gold, Air, 120mm suspension travel, Tapered, Remote lockout, 51 mm fork offset

Travel: 120mm

Spring Type: Air
Bottom Bracket

BSA, 73mm, threaded
Headset

Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Handlebar

MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Saddle

MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost

MERIDA TEAM TR SL, 30.9mm diameter, 0mm setback, S/M: 150mm travel seatpost – L/XL/XXL: 170mm travel seatpost

Type: Dropper

Groupset

Rear Derailleur

Shimano XT, SGS
Crank

Shimano Deore MT512, 32 teeth, 170 mm-S, 175 mm-M up
Shifters

JD-FL lever
Cassette

Shimano Deore M6100, 10-51 teeth, 12 speed
Chain

KMC X12
Brakes

Shimano SLX M7100, 2 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes

Double Butted Black stainless
Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub

Shimano TC500-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Tires

Maxxis Rekon, 29×2.4″ WT, tubeless ready, 3C EXO
Disc Rotors

Shimano RT54, 180mm, 160mm
