Description

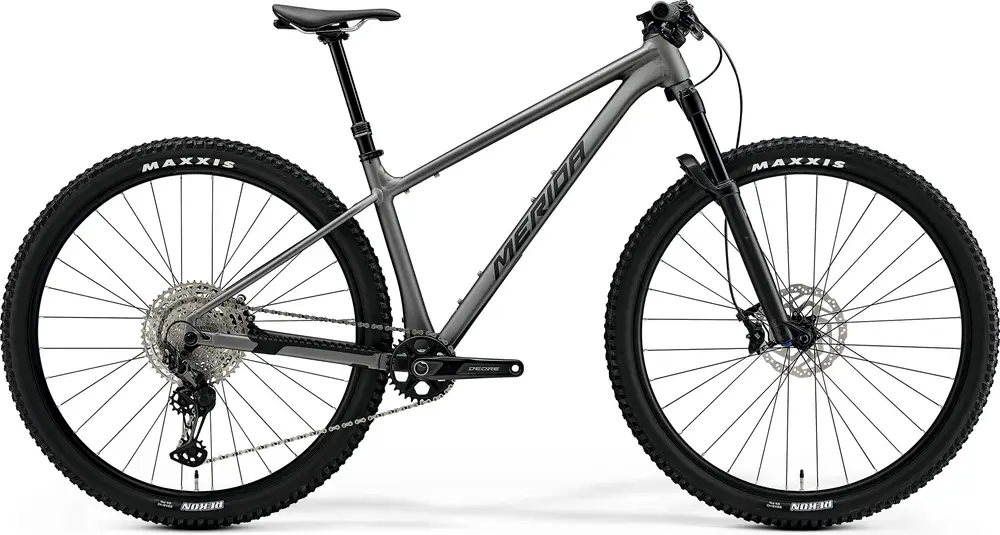

Merida BIG.NINE TR LIMITED Bike 2025 Overview

Build

Frame

BIG.NINE TR LITE III, material: aluminium, 29×2.4″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded

Fork

Manitou Machete Comp, Air, 120mm suspension travel, Tapered, 44 mm fork offset

Travel: 120mm

Spring Type: Air

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Handlebar

MERIDA EXPERT CC, material: aluminium, 760mm width, flat

Saddle

MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost – S 125mm travel seatpost – M 150mm travel seatpost – L/XL 170mm travel seatpost

Type: Dropper

Groupset

Rear Derailleur

Shimano XT, SGS

Crank

Shimano Deore M6100, 32 teeth, 170 mm-S, 175 mm-M up

Shifters

Shimano Deore M6100

Cassette

Shimano Deore M6100, 10-51 teeth, 12 speed

Chain

KMC X12

Brakes

Shimano SLX M7100 / Shimano SLX M7110, 2 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready

Spokes

Double Butted Black stainless

Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-MS-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Rekon, 29×2.4″, wire

Disc Rotors

Shimano RT10, 180mm
