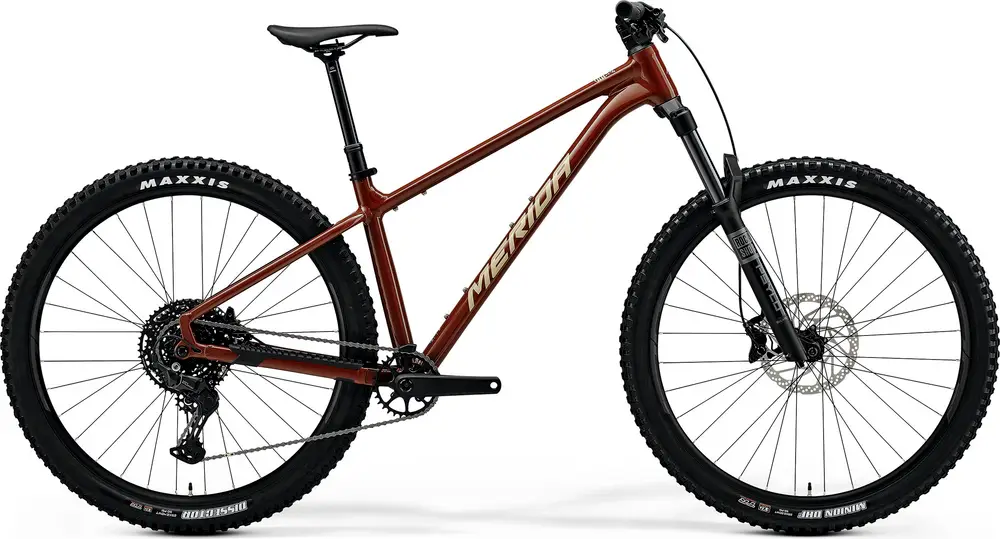

Merida BIG.TRAIL 500 Bike 2025
Compare Wishlist

Merida BIG.Trail 500 Bike 2025

Sku: 2025165498

US $980

Available in stock

*
Compare Wishlist
Brand:
Description

Merida BIG.TRAIL 500 Bike 2025 Overview

Build

Frame

BIG.TRAIL TFS II, material: aluminium, 29×2.4″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded

Fork

Rock Shox Psylo Silver RC, Air, 140mm suspension travel, platform

Travel: 140mm

Spring Type: Air

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Handlebar

MERIDA COMP TR, material: aluminium, 780mm width, 20mm rise

Saddle

MERIDA COMP SL, 25% recycled material, V-mount

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost – SHORT : 170mm travel seatpost – MID/LONG: 200mm travel seatpost – XLONG: 230mm travel seatpost

Type: Dropper

Groupset

Rear Derailleur

Shimano CUES U6000, GS

Crank

MERIDA Expert TR II, 32 teeth, 165mm XSHORT and SHORT

Shifters

Shimano SL-MT500-L

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

KMC xGlide

Brakes

Shimano MT410, 4 piston, 2 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

Spokes

Double Butted Black stainless

Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Minion DHF, 29×2.5″, fold, TR EXO Dual

Disc Rotors

Shimano RT30, 203mm, 180mm
