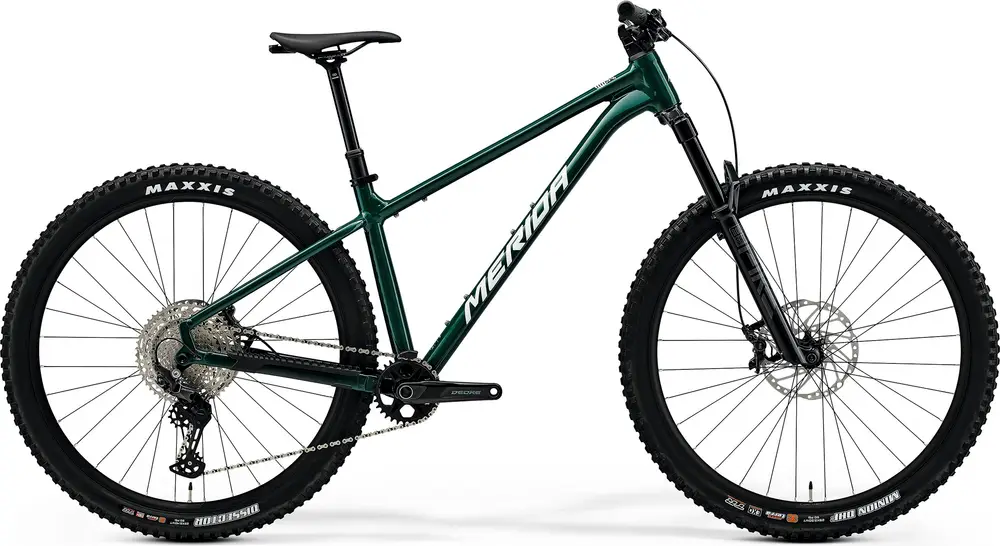

Merida BIG.TRAIL 600 Bike 2025
Compare Wishlist

Merida BIG.Trail 600 Bike 2025

Sku: 2025168250

US $1,260

Available in stock

*
Compare Wishlist
Brand:
Description

Merida BIG.TRAIL 600 Bike 2025 Overview

Build

Frame

BIG.TRAIL TFS II, material: aluminium, 29×2.4″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded

Fork

Rock Shox Pike, Air, 140mm suspension travel, tapered, platform, 44mm fork offset, 29×2.6 max. wheelsize

Travel: 140mm

Spring Type: Air

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Handlebar

MERIDA EXPERT TR II, material: aluminium, 780mm width, 30mm rise

Saddle

MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost – SHORT : 170mm travel seatpost – MID/LONG: 200mm travel seatpost – XLONG: 230mm travel seatpost

Type: Dropper

Groupset

Rear Derailleur

Shimano Deore M6100, SGS

Crank

Shimano Deore M6120, 32 teeth, 165mm XSHORT and SHORT

Shifters

Shimano Deore M6100

Cassette

Shimano Deore M6100, 10-51 teeth, 12 speed

Chain

KMC X12

Chain Guide

MERIDA EXPERT TR ISCG05

Brakes

Shimano XT M8120, 4 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29″

Spokes

Double Butted Black stainless

Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Minion DHF, 29×2.5″, fold, TR EXO 3C MaxxTerra

Disc Rotors

Shimano RT64, 203mm
