Build

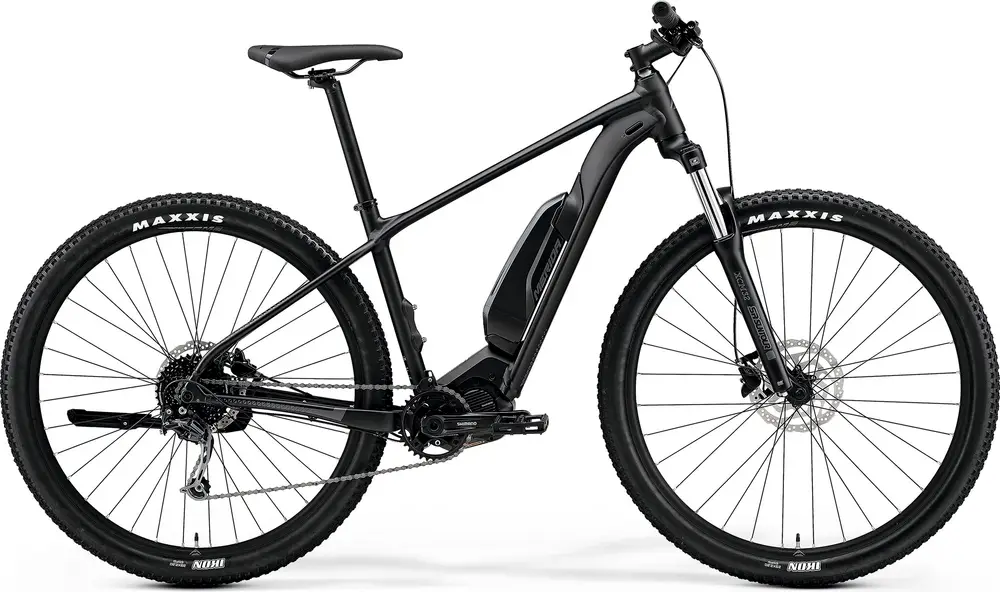

| Frame | eBIG.NINE LITE, material: aluminium *max. wheelsize 29×2.20″ without fender max./ 29″x2.00″ with fender max. wheelsize, 148x12mm axle standard, external BB Standard: BSA, Threaded |
|---|---|
| Fork | Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29×2.4″ max wheelsize Travel: 100mm Spring Type: Coil |
| Bottom Bracket | BSA, threaded |
| Headset | Merida 2341 Neck |
| Stem | MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 6 stem angle, 80 mm-M, 90 mm-L, 100 mm-XL |
| Handlebar | MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise |
| Saddle | MERIDA COMP SL, V-mount |
| Seatpost | MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback Type: Rigid |
| Pedals | VP VPE-537 |
Groupset
| Rear Derailleur | Shimano Alivio M3100, SGS |
|---|---|
| Crank | Shimano CRE70-B, 34 teeth |
| Shifters | Shimano Alivio M3100 9 |
| Cassette | Shimano HG200, 11-36 teeth, 9 speed |
| Chain | KMC e9S |
| Brakes | Shimano MT-200, 2 piston Type: Hydraulic Disc |
Wheels
| Rims | MERIDA COMP CC, 20mm inner width, material: aluminium |
|---|---|
| Front Hub | Shimano MT400 / Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub | Shimano MT400 / Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Front: Maxxis Ikon, 29×2.2″, kevlar bead, Rear: Maxxis Ikon, 29×2.2″, kevlar bead |
| Disc Rotors | Shimano RT10, 180 mm |
Electric Components
| Motor | Shimano EP6, 85Nm |
|---|---|
| Battery | Shimano EN605, 504Wh |
| Display | Shimano SC-EN500 |
| Charger | Shimano EC-E6002, 2A charging current |
Accessories
| Lights | CG-119PG-BLACK(1) / CG-404RG-BLK |
|---|---|
| Stand | CL-KA98, 29″ |
