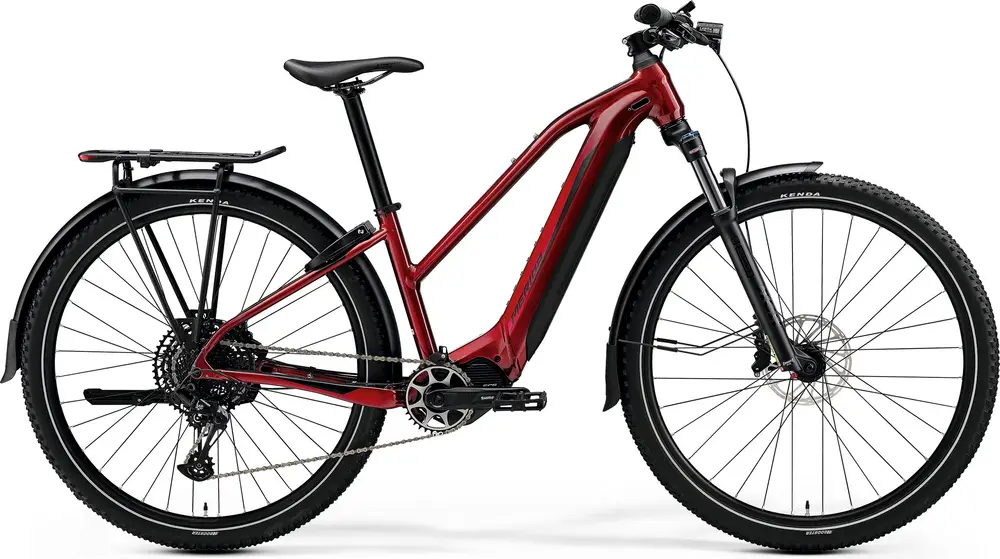

Merida eBig Tour 675 EQ Electric Bike 2024

Name: Merida eBig Tour 675 EQ Electric Bike 2024
Brand: Merida
SKU: E-35509948
Price: 2550 USD
Availability: InStock

Sku: E-35509948

US $2,550

Available in stock

Features

A 29 aluminum frame commuter e-bike with high-end components and hydraulic disc brakes.

Category: Electric Bike

Frame	eBIG.TOUR LITE IV, material: aluminium, 29×2.35″ without fender max. / 29×2.25″ with fender max. wheelsize, 148×12 mm axle standard, intube BB Standard: BSA, Threaded
Fork	SR Suntour XCR34 LOR DS, Air Boost, 100 mm, Tapered, 51 mm fork offset, 29×2.4″ max. wheelsize Travel: 100mm Spring Type: Air
Bottom Bracket	BSA, threaded
Headset	MERIDA 8155
Stem	MERIDA EXPERT CT, material: aluminium, 31.8 mm diameter, adjustable, 90 mm all sizes
Handlebar	MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise
Saddle	MERIDA EXPERT TK, V-mount
Seatpost	MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback Type: Rigid
Pedals	VP VPE-537

Rear Derailleur	SRAM NX Eagle
Crank	Samox EMA04, 34 teeth
Shifters	SRAM NX Eagle 12
Cassette	SRAM PG-1210 Eagle, 10-50 teeth, 12 speed
Chain	SRAM SX Eagle
Brakes	SRAM DB8, 4 piston Type: Hydraulic Disc

Rims	MERIDA COMP CC II, 25 mm inner width, material: aluminium
Front Hub	Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110×15 mm width front hub, 32 spoke holes, 6 bolt, 148×12 mm width rear hub, 36 spoke holes, 6 bolt
Rear Hub	Novatec SL-TEAM D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110×15 mm width front hub, 32 spoke holes, 6 bolt, 148×12 mm width rear hub, 36 spoke holes, 6 bolt
Tires	Front: Kenda Booster, 29×2.2″, wire, Rear: Kenda Booster, 29×2.2″, wire
Disc Rotors	SRAM CenterLine, 180 mm

Motor	Shimano EP6, 85Nm
Battery	Trendpower Internal Battery 750Wh
Display	Shimano SC-EN600
Charger	Simplo EU Charger, 4A

Lights	Lezyne E-Bike Power STVZO E115 / Spanninga Co mmuter GLOW XE
Fenders	Sunnywheel SW-FA311-65A/ SW-FA311-65E1
Racks	MERIDA MA008-1 w/spring clamp
Lock	Abus 5650 LH-3 lock
Stand	Massload CL-KA98
