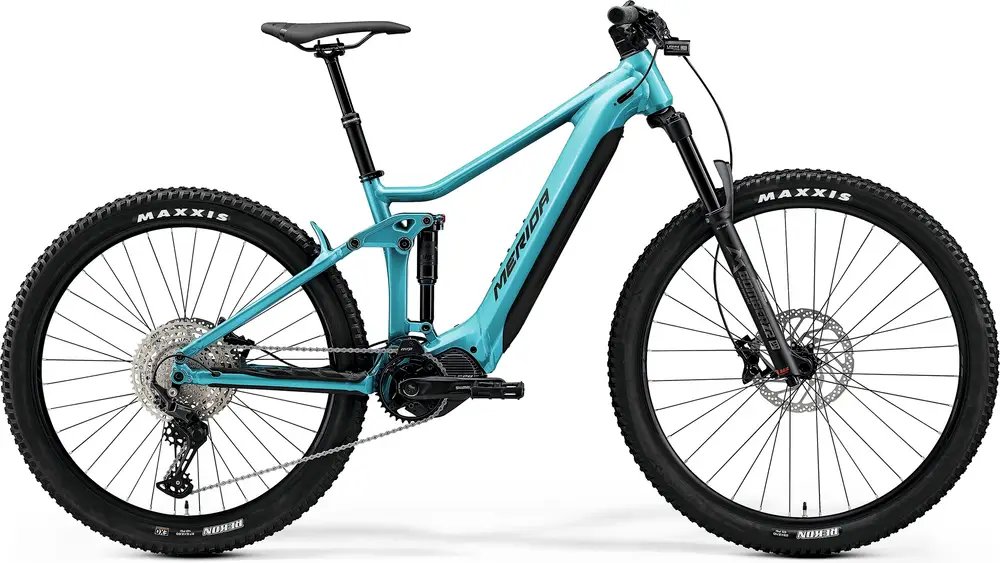

Build
| Frame |
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5×2.8″ max. wheelsize, 148x12mm axle standard, intube BB Standard:Â BSA, 73mm, Threaded |
|---|---|
| Fork |
Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29×2.4″ max wheelsize Travel:Â 140mm Spring Type:Â Air |
| Shock |
SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout Travel:Â 133mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
MERIDA-8152 / MERIDA-8157 for M size |
| Stem |
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0 stem angle, Supernova mount, 50 mm all sizes |
| Handlebar |
MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle |
MERIDA EXPERT CC, V-mount |
| Seatpost |
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback Type:Â Rigid |
| Pedals |
VP VPE-537 |
Groupset
| Rear Derailleur |
Shimano Deore M5120, SGS |
|---|---|
| Crank |
Shimano CRE70-B, 34 teeth |
| Shifters |
Shimano Deore M4100 |
| Cassette |
Shimano M4100, 11-46 teeth, 10 speed |
| Chain |
KMC e10s |
| Brakes |
TEKTRO HD-M745, 4 piston Type:Â Hydraulic Disc |
Wheels
| Rims |
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Front Hub |
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Rear Hub |
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires |
Front: MAXXIS REKON, 29×2.4″, wire, DUAL, Rear: MAXXIS REKON, 27.5×2.6″, wire, EXO |
| Disc Rotors |
TR-25, 203 mm, 180 mm |
Electric Components
| Motor |
Shimano EP6, 85Nm |
|---|---|
| Battery |
Trendpower Internal Battery, 750Wh |
| Display |
Shimano SC-E5003 |
| Charger |
Trendpower EU Charger, 4A |
Accessories
| Lights |
LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / Herrmans H-Cargo integrated in MERIDA MIK carrier |
|---|---|
| Fenders |
Fender:FA311-70A / 75E3 with SW803V-70 / 75, fender stay MA007, alloy rail |
| Racks |
MERIDA MA006 |
| Stand |
Atranvelo ED-100-PC |
