Merida eONE-SIXTY 575 Bike 2025
Compare Wishlist

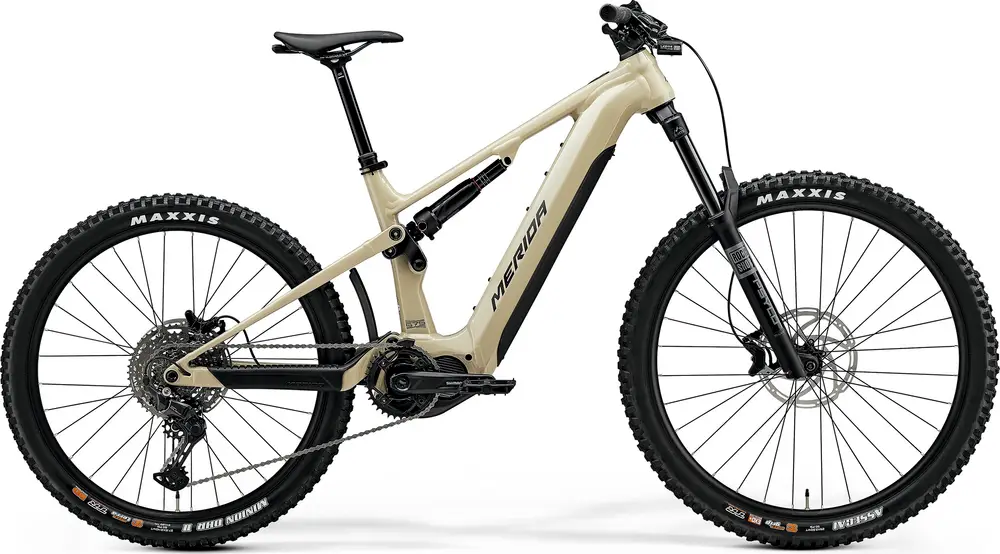

Merida eONE-Sixty 575 Bike 2025

Sku: 2025169322

US $3,220

Available in stock

*
Compare Wishlist
Brand:
Description

Merida eONE-SIXTY 575 Bike 2025 Overview

Build

Frame

eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29×2.6″ max. wheelsize, 148x12mm axle standard, intube, 750 Wh

BB Standard: BSA, 73mm, Threaded

Fork

Rock Shock Psylo Silver R, 160mm suspension travel, Tapered, 44mm fork offset, 29×2.6″ max wheelsize

Travel: 160mm

Shock

Rock Shock Deluxe

Travel: 160mm

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA EXTERNAL neck w/ Blocklock

Handlebar

MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB

Saddle

MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost – S: 150mm travel seatpost – M/L: 200mm travel seatpost – XL: 230mm travel seatpost

Type: Dropper

Pedals

VP VPE-533

Groupset

Rear Derailleur

Shimano Cues U6000, GS

Crank

FSA 1x Steel Chainring, 36 teeth

Shifters

Shimano SL -MT500-L

Cassette

Shimano Cues LG400, 11-48 teeth, 10 speed

Chain

Shimano LG500

Brakes

Tektro Gemini M535, 4 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29″, rear 27.5″

Spokes

Black stainless

Front Hub

Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC600-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Maxxis Assegai, 29×2.5 “, fold, TR EXO+ 3C MaxxGrip

Disc Rotors

Tektro TR203-45, 203mm

Electric Components

Motor

Shimano EP801, 85Nm

Battery

Trendpower Internal Battery 750 Wh TPS-C04-35SD Gen 2, removeable

Display

Shimano SC-EM800
