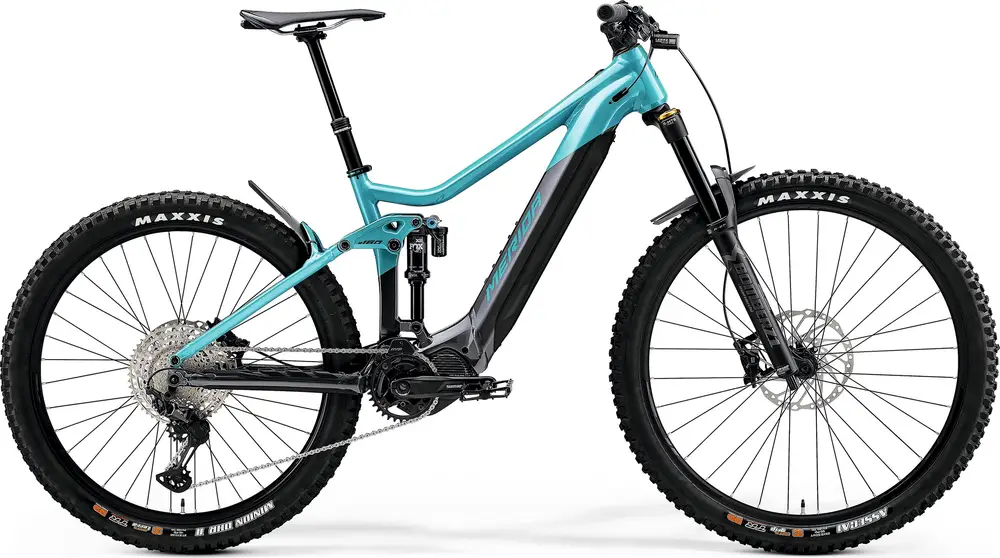

Build
| Frame | eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5×2.8″ max. wheelsize, 148x12mm axle standard, intube BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29×2.6″ max wheelsize Travel: 160mm Spring Type: Air |
| Shock | FOX Float DPX2 Performance, platform Travel: 150mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | MERIDA-8152 |
| Handlebar | MERIDA EXPERT eTR, 780mm width, 20mm rise |
| Saddle | MERIDA EXPERT CC, V-mount, incl. MERIDA minitool |
| Seatpost | MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS: 100mm travel seatpost – S/M 150mm travel seatpost – L/XL 170mm travel seatpost Type: Dropper |
| Pedals | VP VPE-527 |
Groupset
| Rear Derailleur | Shimano XT RDM8100 Shadow+ 12 |
|---|---|
| Crank | Shimano CRE80-12-B, 34 teeth, Shimano FCEM600 |
| Shifters | Shimano SL -MT500-IL |
| Cassette | Shimano M6100, 10-51 teeth, 12 speed |
| Chain | KMC e12T EPT |
| Brakes | Shimano SLX, 4 piston Type: Hydraulic Disc |
Wheels
| Rims | MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub | Shimano SLX, 148x12mm width rear hub, 36 spoke holes, Centerlock |
| Tires | Maxxis Assegai, 29×2.5 “, fold, TR EXO+ 3C MaxxGrip |
| Disc Rotors | Shimano RT64 / Shimano RTEM600, 203 mm |
Electric Components
| Motor | Shimano DU-EP600, 85Nm |
|---|---|
| Battery | Shimano EN806 630Wh |
| Display | Shimano SC-EN600 |
Accessories
| Fenders | C093-02F + C093-02R |
|---|
