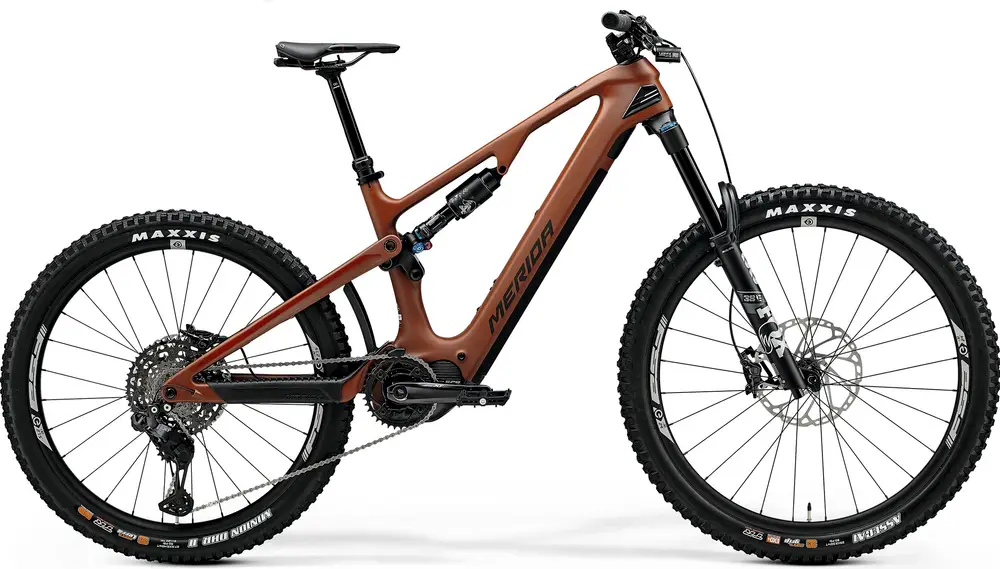

Merida eONE-SIXTY 8000 Bike 2025 Overview

Build

Frame

eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 29 x 2,6 max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh

BB Standard: BSA, 73mm, Threaded

Fork

Fox 38 Performance Elite eMTB+, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29×2.6″ max wheelsize

Travel: 170mm

Spring Type: Air

Shock

Fox Float X Performance, 2 Pos Lever

Travel: 160mm

Bottom Bracket

BSA, 73mm, threaded

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Stem

MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0 stem angle, Supernova mount, 40 mm all sizes

Handlebar

MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB

Saddle

Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool

Seatpost

MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost

Type: Dropper

Pedals

VP VP-532

Groupset

Rear Derailleur

Shimano XT Di2 RDM8150 LinkGlide 11

Crank

FSA 1x Steel Chainring, 36 teeth

Shifters

Shimano SL -MT500-IL / Shimano XT Di2 M8150 11

Cassette

Shimano LG700, 11-50 teeth, 11 speed

Chain

CNLG500

Brakes

Shimano XT, 4 piston

Type: Hydraulic Disc

Wheels

Rims

FSA E-MTB i30 Alloy, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6-Bolt, Shimano HG, material: aluminium, Tubeless ready (tubeless tape and valves included)

Front Hub

MERIDA EXPERT TR, including removeable lever, 6/4mm allen key

Rear Hub

MERIDA EXPERT TR, including removeable lever, 6/4mm allen key

Tires

Front: Maxxis Assegai, 29×2.5 “, fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5×2.4 “, fold, 3C DD TR MaxxTerra

Disc Rotors

Shimano RT66, 220 mm, 203 mm

Electric Components

Motor

Shimano EP801, 85Nm

Battery

Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated

Display

Shimano SC-EM800

Charger

Trendpower EU Smart Charger, 4A

Accessories

Lights

LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / USB REAR Light CG-214RG
