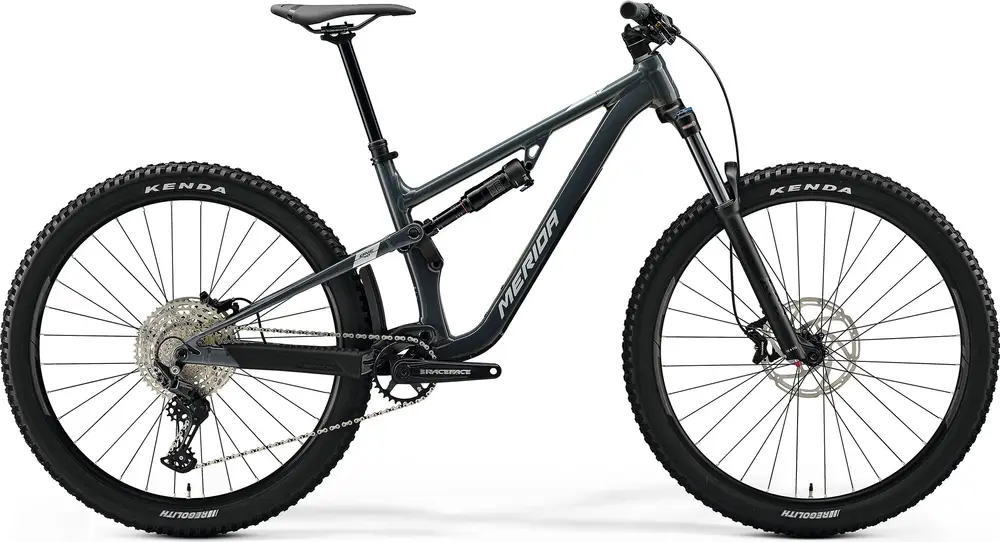

2023 Merida ONE-FORTY 400 A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Build
| Frame | ONE-FORTY LITE III, 143mm suspension travel 29″, material: aluminium, 29×2.5″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard, SRAM-UDH Hanger BB Standard: BSA, 68mm, Threaded |
|---|---|
| Fork | SR Suntour XCR34 LOR DS, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29×2.4″ max wheelsize |
| Rear Shock | Rock Shox Deluxe Select+, lockout |
| Bottom Bracket | Race Face BSA 68/73 – 24mm |
| Headset | MERIDA 8158 |
| Stem | MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 50 mm |
| Handlebar | MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise |
| Saddle | MERIDA COMP SL, V-mount |
| Seatpost | MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost – S: 150mm travel seatpost – M/L/XL: 200mm travel seatpost |
Groupset
| Rear Derailleur | Shimano Deore M5100 Shadow+, SGS |
|---|---|
| Crank | Race Face Ride, 32 teeth, 170 mm-S, 175 mm-M up |
| Shifters | Shimano SL -MT500-L / Shimano Deore M5100 |
| Cassette | Shimano Deore M5100, 11-51 teeth, 11 speed |
| Chain | KMC X11 |
| Brakes | Tektro HD-M745, 4 piston |
Wheels
| Rims | MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes | Black stainless |
| Front Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Rear Hub | Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires | Kenda Regolith, 29×2.4″, wire |
| Disk Rotors | Tektro TR203-35, 203 mm |
