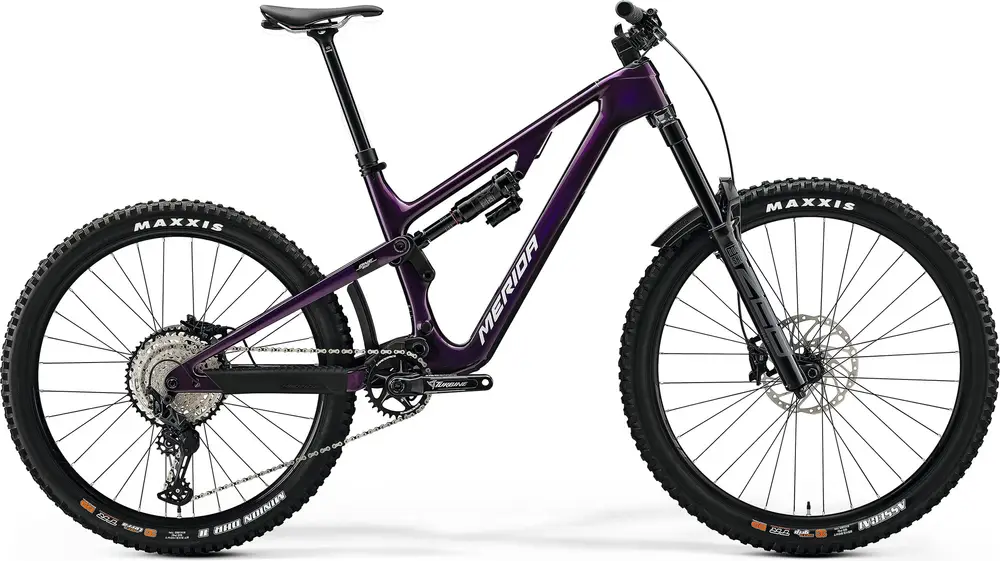

2023 Merida ONE-SIXTY 6000 A 27.5″ carbon frame full suspension enduro bike with upper mid-range components.
Build
| Frame |
ONE-SIXTY CF4 III, 171mm suspension travel mullet / 162mm suspension travel 29″, material: carbon, 29×2.5″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard, SRAM-UDH Hanger BB Standard:Â BSA, 73mm, Threaded |
|---|---|
| Fork |
Rock Shox Zeb Select, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29×2.6″ max. wheelsize |
| Rear Shock |
Rock Shox Super Deluxe Select+, platform |
| Bottom Bracket |
BB, BSA 73mm– Ø30mm, Ext. Seal |
| Headset |
MERIDA 8151 |
| Stem |
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 40 mm |
| Handlebar |
MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise |
| Saddle |
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Seatpost |
MERIDA TEAM TR, 34.9mm diameter, 0mm setback, 30-230mm travel seatpost |
Groupset
| Rear Derailleur |
Shimano SLX M7100 Shadow+, SGS |
|---|---|
| Crank |
Race Face Turbine, 32 teeth, 170 mm for |
| Shifters |
Shimano SL -MT500-IL / Shimano XT, Multi Release |
| Cassette |
Shimano SLX, 10-51 teeth, 12 speed |
| Chain |
KMC X12 |
| Chain Guide |
MERIDA EXPERT TR ISCG05 |
| Brakes |
Shimano SLX M7120, 4 piston |
Wheels
| Rims |
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), rear 27.5″ up to Size M, rear 29″ L & XL |
|---|---|
| Spokes |
Double Butted Black stainless |
| Front Hub |
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Maxxis Assegai, 29×2.5″, fold, TR EXO+ 3C MaxxGrip |
| Disk Rotors |
Shimano RT64, 203 mm |
