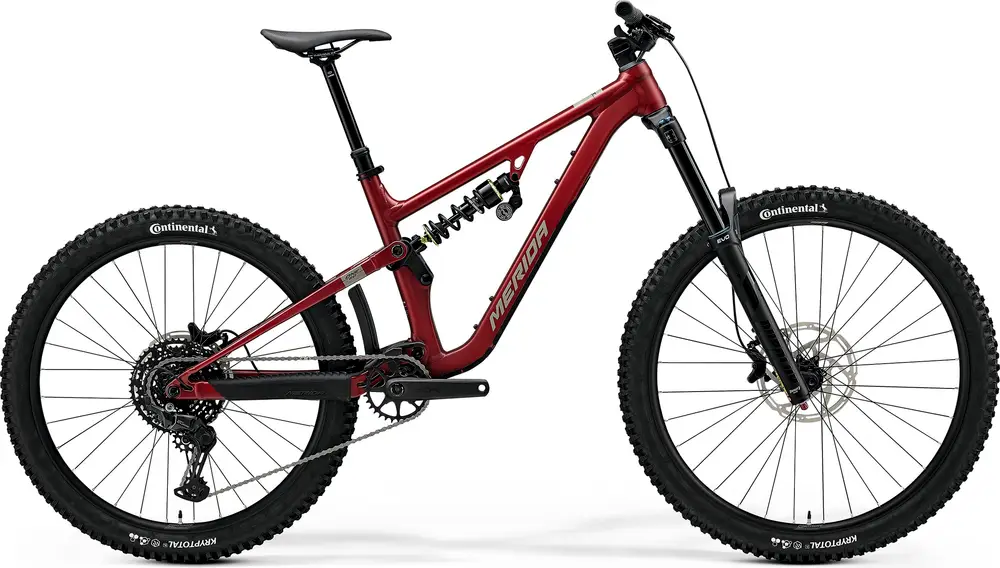

Merida ONE-SIXTY FR 400 Bike 2025
Compare Wishlist

Merida ONE-Sixty FR 400 Bike 2025

Sku: 2025168994

US $1,960

Available in stock

*
Compare Wishlist
Brand:
Description

Merida ONE-SIXTY FR 400 Bike 2025 Overview

Build

Frame

ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29×2.5″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard

BB Standard: BSA, 73mm, Threaded

Fork

SR Suntour Durolux 38 RC, Air, 180mm suspension travel, Tapered, xxmm fork offset, 29×2.60″ max. wheelsize

Travel: 180mm

Spring Type: Air

Shock

DVO Jade X D3, coil, spring rate: XS 300 lbs, S 350 lbs, M: 400 lbs, L: 450, XL: 500

Travel: 171mm

Bottom Bracket

Samox BSA 24mm EB2401

Headset

Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Stem

MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0 stem angle, 40 mm

Handlebar

MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise

Saddle

MERIDA COMP SL, 25% recycled material, V-mount

Seatpost

MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost – MID: 170mm travel seatpost – LONG: 200mm travel seatpost – XLONG: 230mm travel seatpost

Type: Dropper

Groupset

Rear Derailleur

Shimano CUES U6000, GS

Crank

MERIDA Expert TR II, 32 teeth, 165 mm for all sizes

Shifters

Shimano SL-MT500-L / Shimano CUES U6000

Cassette

Shimano LG300, 11-48 teeth, 10 speed

Chain

KMC xGlide

Chain Guide

MERIDA EXPERT TR ISCG05

Brakes

Tektro Gemini HD-M535, 4 piston

Type: Hydraulic Disc

Wheels

Rims

MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29″, rear 27.5″

Spokes

Double Butted Black stainless

Front Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock

Tires

Front: Continental Kryptotal-F, 29×2.4″, fold, TR, Enduro casing, Soft Compund, Rear: Continental Kryptotal-R, 27.5×2.4″, fold, TR, Enduro Casing, Soft Compound

Disc Rotors

Tektro TR203-45, 203mm
