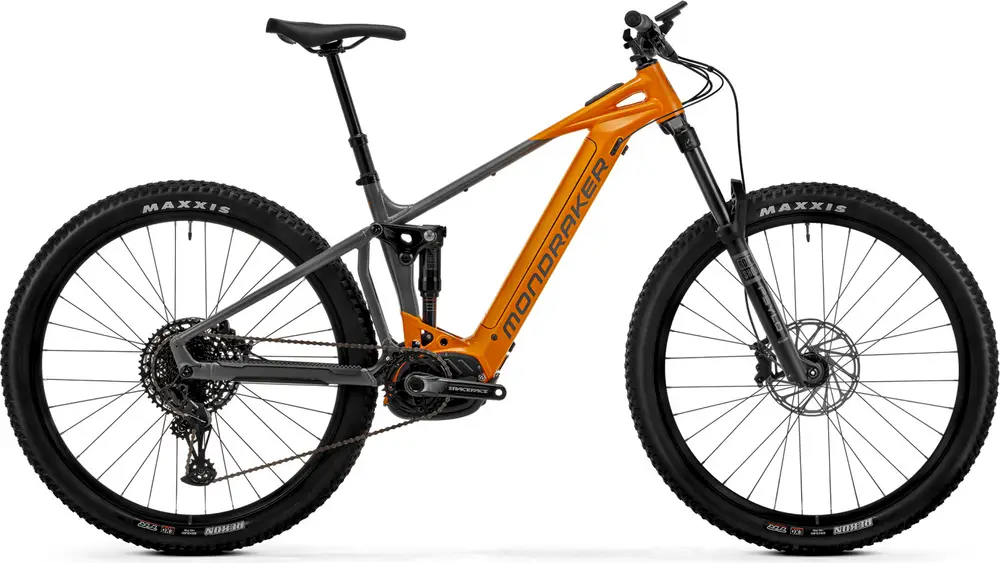

Mondraker CHASER 2024 Overview
Build
Frame |
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard Hanger Standard:Â UDH Colors:Â Black / Grey; Orange / Grey |
---|---|
Fork |
RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel:Â 160mm Spring Type:Â Air |
Shock |
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel:Â 150mm |
Headset |
Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45x45, bottom 52x40x8x45x45 |
Stem |
Onoff S3 30mm 0, 6061 forged alloy, 31.8mm barbore |
Handlebar |
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
Saddle |
MDK ebike black |
Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type:Â Dropper |
Grips |
Onoff Beehive, 1lock-on, 135mm |
Groupset
Rear Derailleur |
SRAM SX Eagle,12s |
---|---|
Crank |
Race Face Aeffect-R ebike, 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Shifters |
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
Chain |
SRAM SX Eagle, 12s, Powerlock |
Brakes |
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type:Â Hydraulic Disc |
Brake Levers |
SRAM DB8, tool reach adjust, lever pivot bushings |
Wheels
Rims |
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
---|---|
Spokes |
Mavic J-bend double butted, contactless lacing |
Front Hub |
Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
Tires |
Front: Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Electric Components
Motor |
New Bosch Performance Line CX (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
---|---|
Battery |
Bosch Powertube 625Wh |
Display |
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
