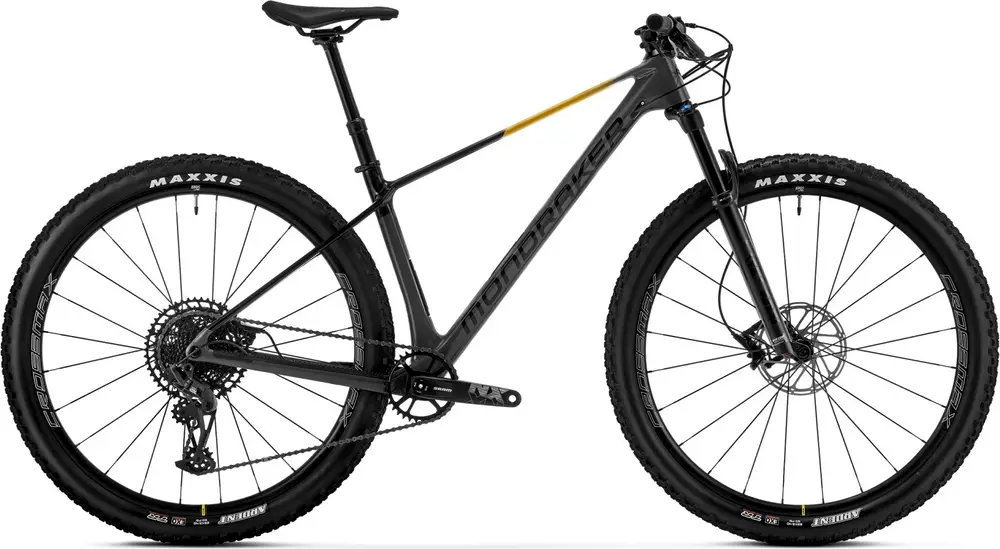

Mondraker CHRONO CARBON DC R 2024 Overview
Build
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload Travel: 120mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8×40 45×45, bottom 51,8×40 36×45 |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9 backsweep, 0 upsweep, 31.8mm barbore |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm Type: Dropper |
| Grips | Onoff Twin, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | SRAM NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, steel, X-Sync 2 |
| Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
Wheels
| Rims | Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead, Rear: Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
