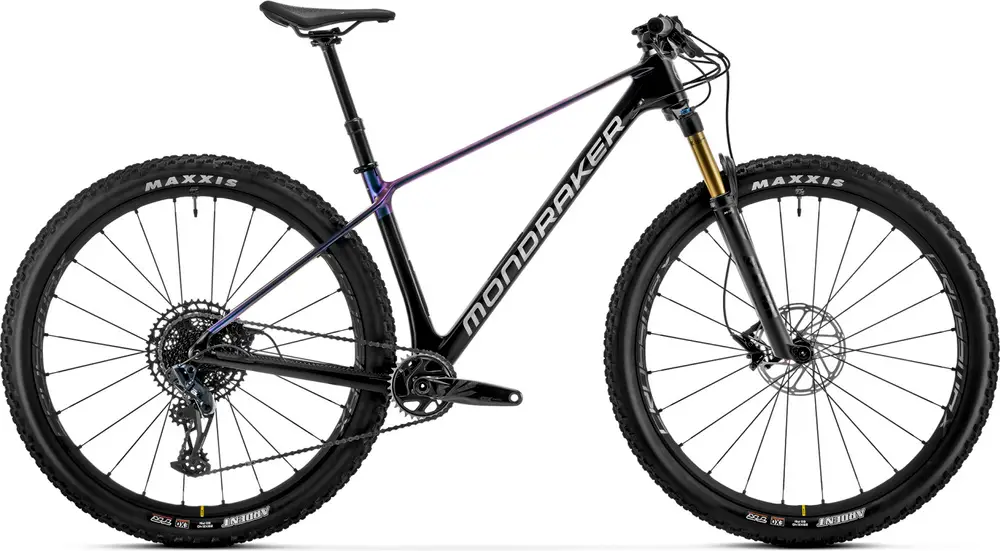

Mondraker CHRONO CARBON DC RR 2024 Overview
Build
| Frame | Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload Travel: 120mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8×40 45×45, bottom 51,8×40 36×45 |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9 backsweep, 0 upsweep, 31.8mm barbore |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | SRAM GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, CNC-machined alloy, X-SYNC 2 |
| Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
Wheels
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead, Rear: Maxxis Ardent 29×2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead |
