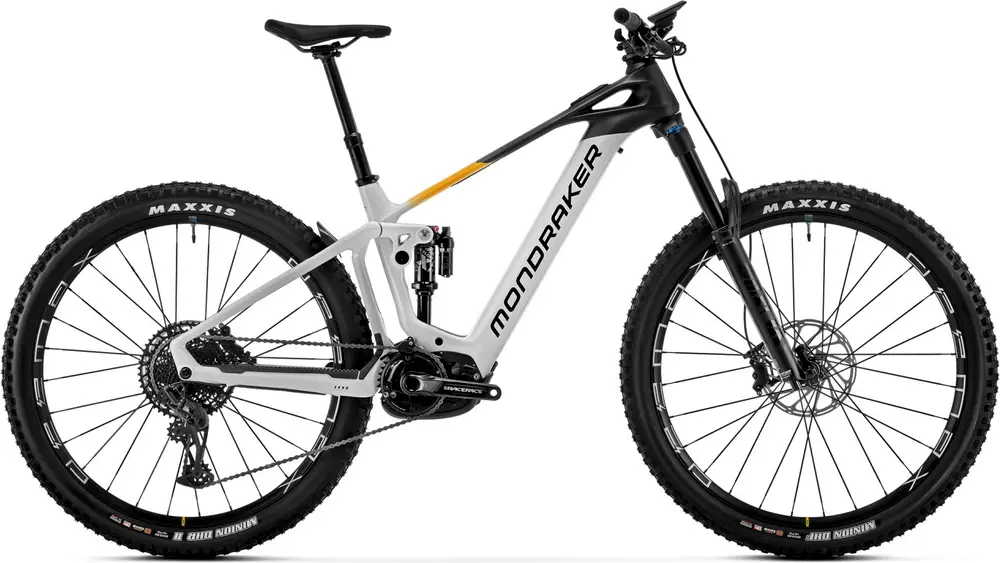

Mondraker CRAFTY CARBON R 2024 Overview
Build
Frame |
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Hanger Standard:Â UDH |
---|---|
Fork |
Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Travel:Â 160mm Spring Type:Â Air |
Shock |
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel:Â 150mm |
Headset |
Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing |
Stem |
Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Handlebar |
Onoff Krypton 1.0 double butted 7075-T6 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
Saddle |
FIZIK Terra Aidon X5 145mm |
Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm Type:Â Dropper |
Grips |
Onoff Desert, 1lock-on, 135mm |
Groupset
Rear Derailleur |
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
---|---|
Crank |
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD |
Shifters |
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
Chain |
SRAM NX Eagle, 12s, Powerlock |
Brakes |
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type:Â Hydraulic Disc |
Brake Levers |
SRAM DB8, tool reach adjust, lever pivot bushings |
Wheels
Rims |
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
---|---|
Spokes |
Mavic J-bend double butted, contactless lacing |
Front Hub |
Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
Tires |
Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
Motor |
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
---|---|
Battery |
Bosch Powertube 750Wh |
Display |
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
