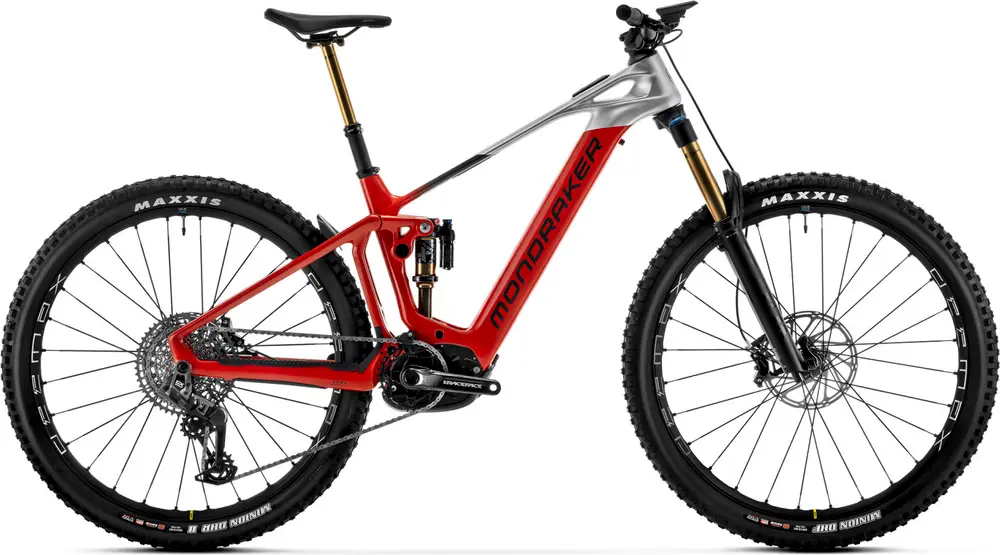

Mondraker CRAFTY CARBON RR 2024 Overview
Build
| Frame | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Hanger Standard: UDH |
|---|---|
| Fork | Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm |
| Headset | Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
|---|---|
| Crank | Race Face Aeffect ebike, 165mm, Rings: SRAM T-Type 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: Hydraulic Disc |
| Brake Levers | SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|---|---|
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
| Motor | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
|---|---|
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
