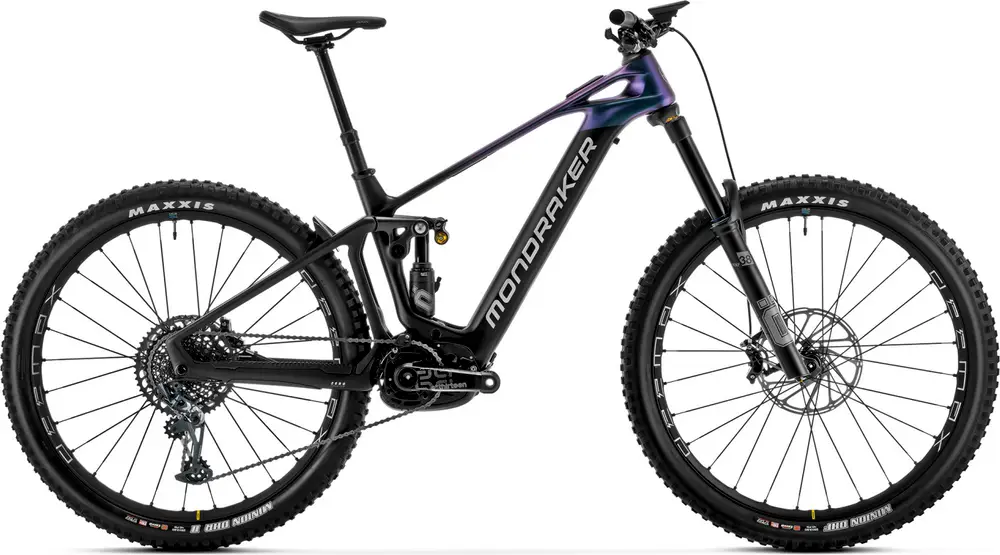

Mondraker CRAFTY CARBON XR 2024 Overview
Build
| Frame |
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Hanger Standard:Â UDH |
|---|---|
| Fork |
hlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel:Â 170mm Spring Type:Â Air |
| Shock |
hlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel:Â 150mm |
| Headset |
Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem |
Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar |
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle |
FIZIK Terra Aidon X5 145mm |
| Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm Type:Â Dropper |
| Grips |
Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur |
SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank |
E.13 TRS Race carbon ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters |
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain |
SRAM NX Eagle, 12s, Powerlock |
| Brakes |
Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims |
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|---|---|
| Spokes |
Mavic straight-pull double butted, contactless lacing |
| Front Hub |
Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
| Tires |
Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
| Motor |
Bosch Performance Line CX-Race (20 mph) Smart System |
|---|---|
| Battery |
Bosch Powertube 750Wh |
| Display |
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
