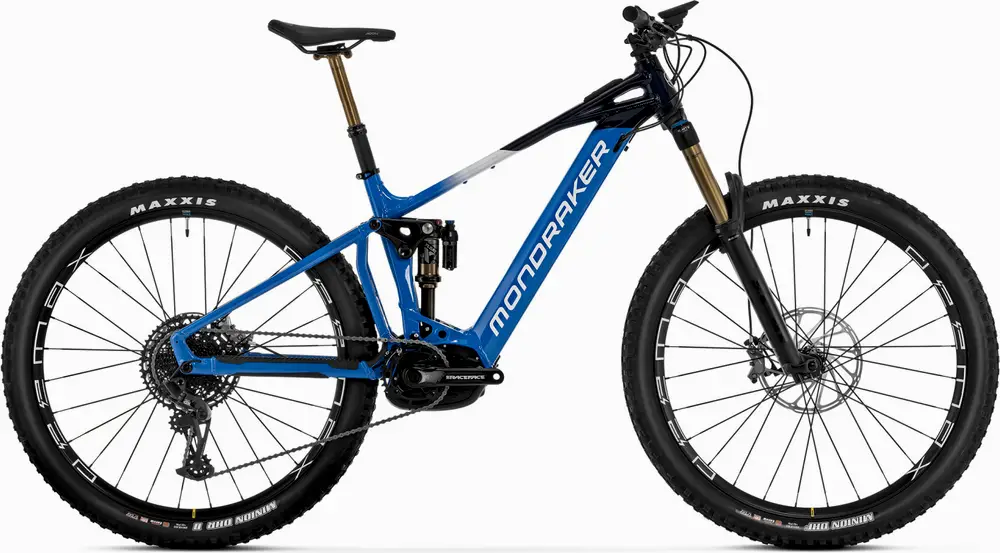

Mondraker CRAFTY RR 2024 Overview
Build
| Frame |
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
|---|---|
| Fork |
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel:Â 160mm Spring Type:Â Air |
| Shock |
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel:Â 150mm |
| Headset |
Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41×30.2x7x45x45, bottom 51.9x40x8x45x45 |
| Stem |
Onoff Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore |
| Handlebar |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle |
FIZIK Terra Aidon X5 145mm |
| Seatpost |
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm Type:Â Dropper |
| Grips |
Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur |
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank |
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters |
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain |
SRAM NX Eagle, 12s, Powerlock |
| Brakes |
Front: SRAM Code Bronze, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
Wheels
| Rims |
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|---|---|
| Spokes |
Mavic J-bend double butted, contactless lacing |
| Front Hub |
Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Tires |
Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
| Motor |
Bosch Performance Line CX Cruise (20 mph) GEN4 SMART SYSTEM |
|---|---|
| Battery |
Bosch Powertube 750Wh |
| Display |
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
