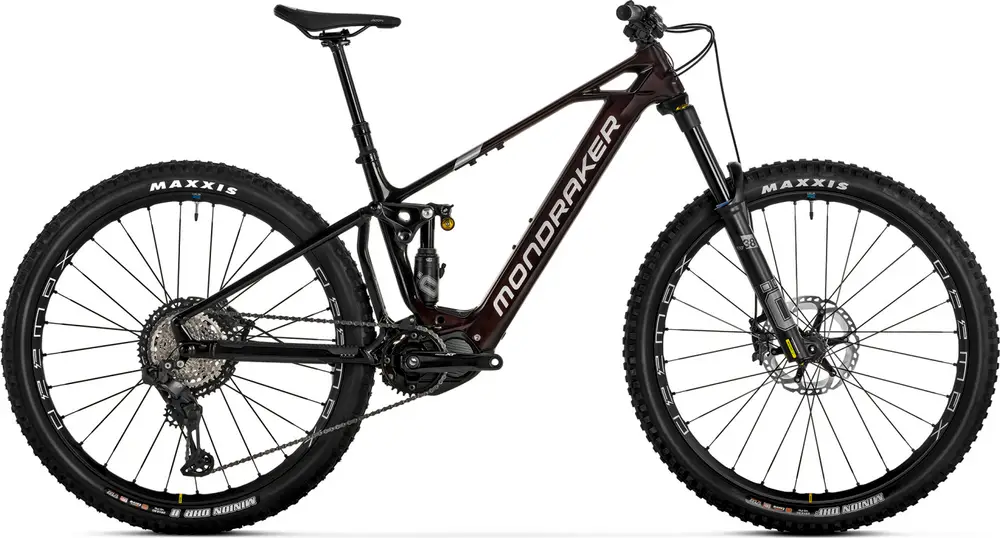

Mondraker CRUSHER RR 2024 Overview
Build
| Frame |
Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. BB Standard:Â BSA, 73mm, Threaded |
|---|---|
| Fork |
hlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel:Â 160mm Spring Type:Â Air |
| Shock |
hlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel:Â 150mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros AZF-601 R1 Block Lock 120, ZS44/28.6 top, ZS56/40 bottom |
| Stem |
Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar |
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle |
FIZIK Terra Aidon X5 145mm |
| Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm + SHIMANO SL-MT800-IL lever Type:Â Dropper |
| Grips |
Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur |
Shimano Deore XT M8150-GS Di2 12s shadow plus, direct mount |
|---|---|
| Crank |
Shimano Steps XT FC-8150 ebike, 165mm, Rings: Shimano EP801, 34T, 104 BCD |
| Shifters |
Shimano XT Di2 SW-M8150 |
| Chain |
Shimano Deore XT M8100 |
| Brakes |
Front: Shimano Deore XT M8120, 4-piston caliper, MT-800 Ice-Tech 203mm Center Lock, Rear: Shimano Deore XT M8120, 4-piston caliper, MT-810 Ice-Tech 203mm Center Lock Type:Â Hydraulic Disc |
| Brake Levers |
Shimano Deore XT M8120 |
Wheels
| Rims |
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|---|---|
| Spokes |
Mavic straight-pull double butted, contactless lacing |
| Front Hub |
Mavic, Boost 15x110mm, Center Lock |
| Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratchet system, Center Lock, MS freehub |
| Tires |
Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
| Motor |
Shimano STEPS EP801 |
|---|---|
| Battery |
Simplo internal 720Wh G3 |
| Display |
Shimano EN600 |
