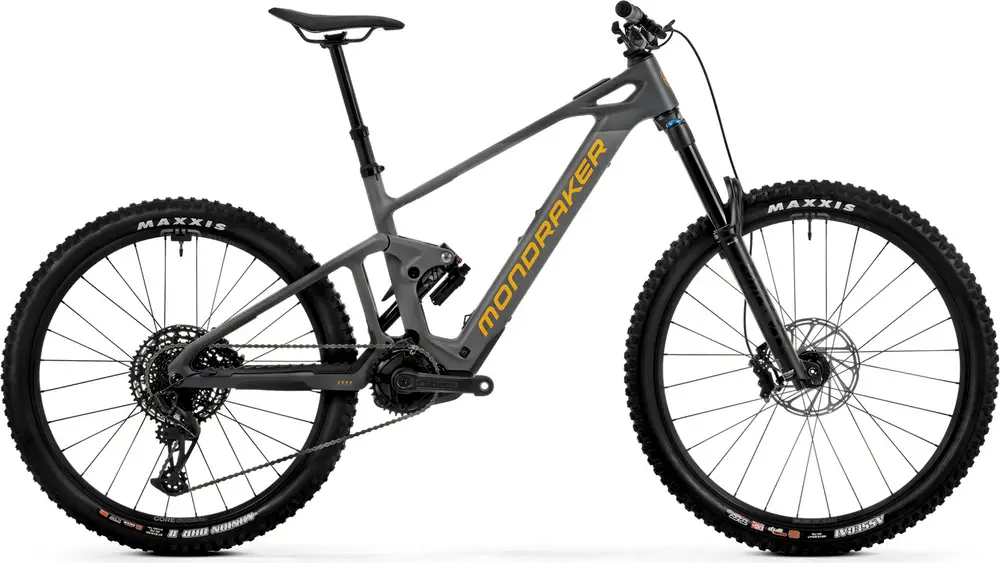

Mondraker DUNE R 2024 Overview
Build
| Frame |
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. Hanger Standard:Â UDH |
|---|---|
| Fork |
FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Travel:Â 170mm Spring Type:Â Air |
| Shock |
Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel:Â 165mm |
| Headset |
Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
| Stem |
Onoff S6 30mm 0, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar |
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle |
Fizik Terra Aidon Slim X5 |
| Seatpost |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type:Â Dropper |
| Grips |
Onoff Forest, CNC lock-on, 135mm |
Groupset
| Rear Derailleur |
SRAM GX Eagle,12s |
|---|---|
| Crank |
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters |
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Chain |
SRAM NX Eagle, 12s, Powerlock |
| Brakes |
Front: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type:Â Hydraulic Disc |
| Brake Levers |
SRAM DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims |
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27””””5 rear |
|---|---|
| Spokes |
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Hub |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub |
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub |
| Tires |
Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 275×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Electric Components
| Motor |
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide |
|---|---|
| Battery |
Bosch Compact Powertube 400Wh |
| Display |
Purion 400 / Bosch Mini Remote / Bosch System Controller |
