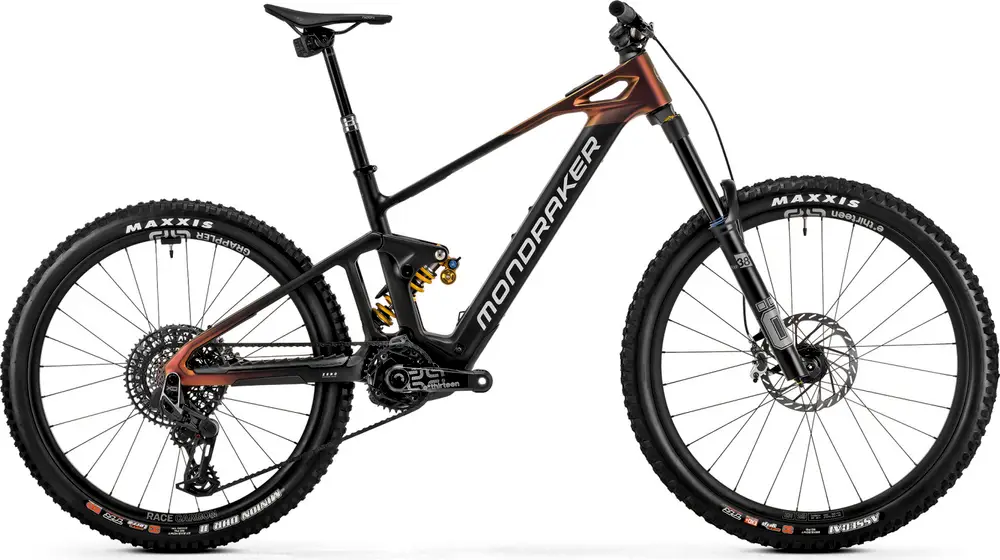

Mondraker DUNE XR 2024 Overview
Build
| Frame |
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. Hanger Standard:Â UDH |
|---|---|
| Fork |
hlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel:Â 180mm Spring Type:Â Air |
| Shock |
hlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings Travel:Â 165mm |
| Headset |
Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
| Stem |
Onoff S9 30mm 0, Full CNC, 31.8mm barbore |
| Handlebar |
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle |
Fizik Terra Aidon Slim X5 |
| Seatpost |
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm Type:Â Dropper |
| Grips |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Groupset
| Rear Derailleur |
SRAM X0 Eagle AXS T-Type,12s |
|---|---|
| Crank |
e*Thirteen TRS Race carbon ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
| Shifters |
SRAM Eagle AXS Pod MMX, 12s |
| Chain |
SRAM X0 Eagle T-Type, 12s, Powerlock |
| Brakes |
Front: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims |
e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27””5 rear |
|---|---|
| Spokes |
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub |
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires |
Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Minion DHR II 275×2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Electric Components
| Motor |
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide |
|---|---|
| Battery |
Bosch Compact Powertube 400Wh |
| Display |
Purion 400 / Bosch Mini Remote / Bosch System Controller |
