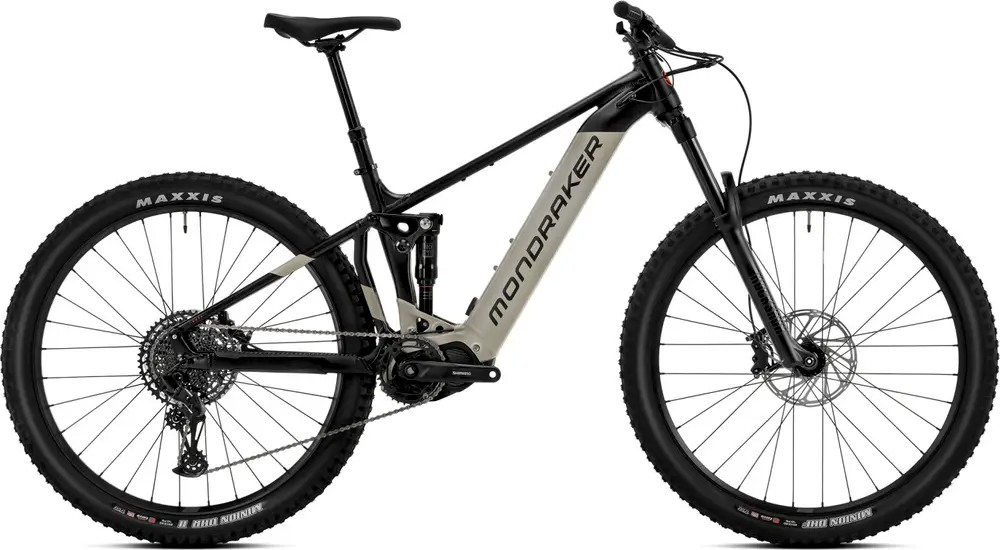

Mondraker DUSK 2024 Overview
Build
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor.*Optional external battery BB Standard: STEPS, Press Fit |
|---|---|
| Fork | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings Travel: 150mm |
| Bottom Bracket | STEPS, press-fit |
| Headset | ONOFF Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41×30.2x7x45x45, bottom 51.9x40x8x45x45 |
| Stem | ONOFF Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | MDK ebike black |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm Type: Dropper |
| Grips | ONOFF Twin, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|---|---|
| Crank | Shimano Steps EP801 ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: Hydraulic Disc |
| Brake Levers | SRAM DB8, tool reach adjust |
Wheels
| Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
| Tires | Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Electric Components
| Motor | Shimano STEPS EP600 |
|---|---|
| Battery | Simplo internal 720Wh |
| Display | Shimano EN600 |
