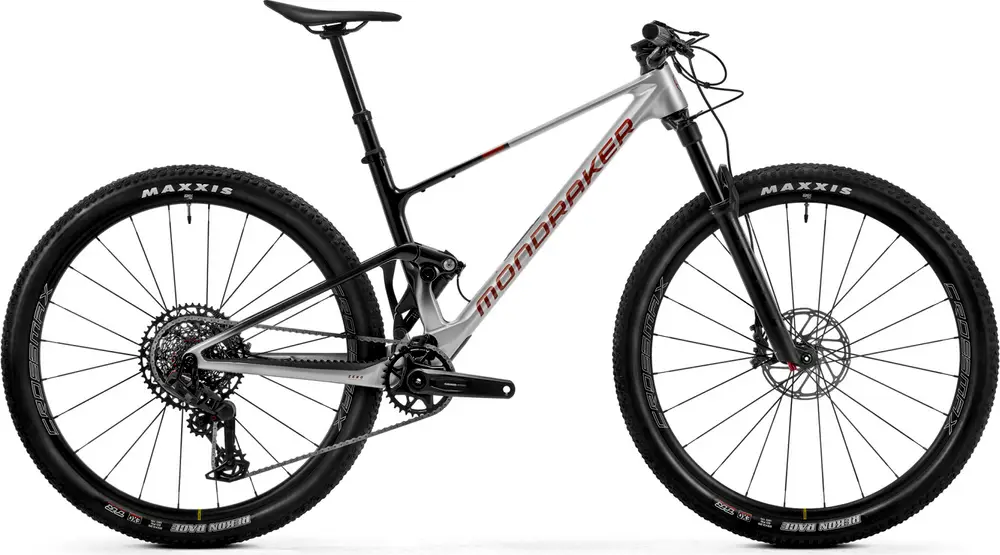

Mondraker F-PODIUM R 2024 Overview
Build
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload Travel: 120mm Spring Type: Air |
| Shock | Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 110mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm, wide |
| Headset | Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs with blocklock |
| Stem | Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff S3 6061 0.2, rise: 5mm, width: 760mm, 8 backsweep, 4 upsweep, 31.8mm barbore |
| Saddle | Fizik Vento Argo X5 |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type: Dropper |
| Grips | Rock Shox Twistloc grips |
Groupset
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12s |
|---|---|
| Crank | SRAM S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, CNC-machined alloy, T-Type |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM Level Bronze 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level Bronze 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level Bronze, tools-free reach adjust, lever pivot bushings |
Wheels
| Rims | Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead, Rear: Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
