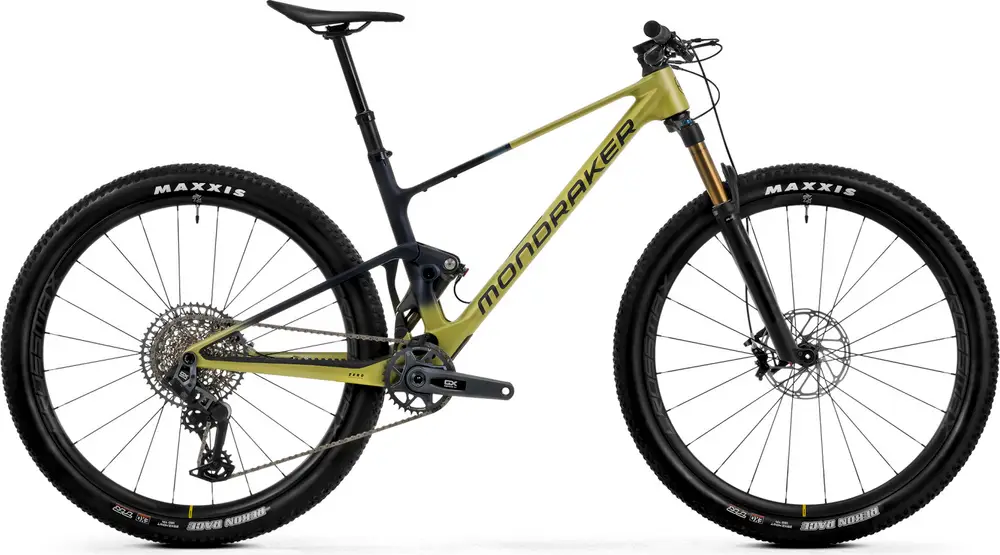

Mondraker F-PODIUM RR 2024 Overview
Build
| Frame | F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 34 Step Cast Float SL Factory Kashima, GRIP SL, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload Travel: 120mm Spring Type: Air |
| Shock | Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 110mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs with blocklock |
| Stem | Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm |
| Handlebar | Onoff S6 Carbon 0.2, rise: 5mm, width: 760mm, 8 backsweep, 4 upsweep, 31.8mm barbore |
| Saddle | Fizik Vento Argo X5 |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type: Dropper |
| Grips | Onoff Foam lightweight 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS T-Type,12s |
|---|---|
| Crank | SRAM GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, CNC-machined alloy, T-Type |
| Shifters | SRAM Eagle AXS Pod Ultimate, 12s |
| Chain | SRAM GX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level Silver 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level Silver 4P Stealth, flatmount 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level Silver, tools-free reach adjust, lever pivot bearings |
Wheels
| Rims | Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Rekon Race 29×2.4, EXO protection, tubeless ready, 120TPI, folding bead, Rear: Maxxis Rekon Race 29×2.4, EXO protection, tubeless ready, 120TPI, folding bead |
