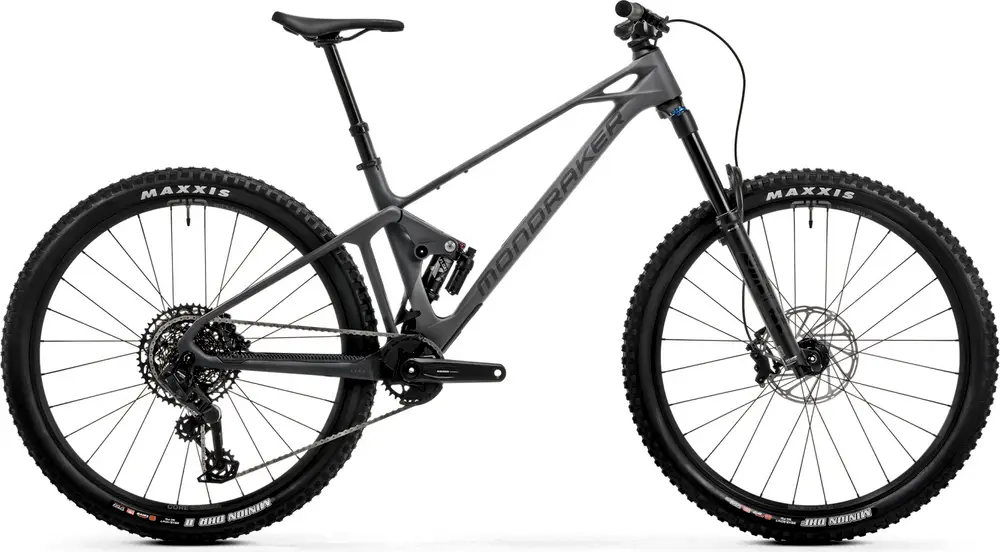

Mondraker FOXY CARBON R 2024 Overview
Build
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Color: Grey / Red |
|---|---|
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 150mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm, wide |
| Headset | Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) Type: Dropper |
| Grips | Onoff Forest, CNC lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12s |
|---|---|
| Crank | SRAM S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55, Rings: 32T, CNC-machined alloy, T-Type |
| Shifters | SRAM Eagle AXS Pod, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8 stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: Hydraulic Disc |
| Brake Levers | SRAM DB8, tool reach adjust, lever pivot bushings |
Wheels
| Rims | e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
