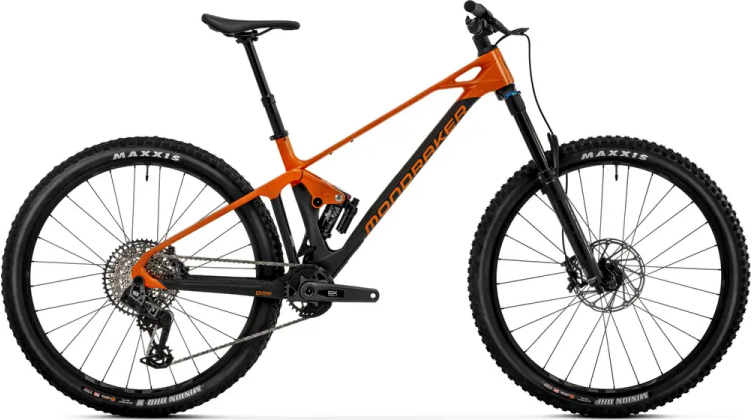

Mondraker FOXY CARBON R AXS 2024 Overview
Build
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 150mm |
| Bottom Bracket | SRAM DUB BSA wide, sealed bearings, 73mm |
| Headset | Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | ONOFF Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm Type: Dropper |
| Grips | ONOFF Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
|---|---|
| Crank | SRAM GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL55, Rings: 32T, steel, X-Sync 2 |
| Shifters | SRAM Eagle AXS Pod, 12s |
| Chain | SRAM GX T-TYPE, 12s, Powerlock |
| Brakes | Front: SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: Hydraulic Disc |
| Brake Levers | SRAM G2 R, tool-free reach adjust |
Wheels
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
| Tires | Front: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
