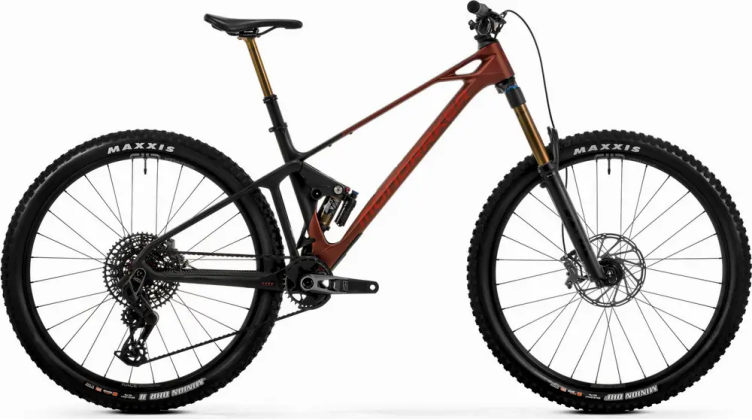

Mondraker FOXY CARBON RR 2024 Overview
Build
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 150mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm, wide |
| Headset | Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0, Full CNC, 31.8mm barbore |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm Type: Dropper |
| Grips | Onoff Forest, CNC lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM X0 Eagle AXS T-Type,12s |
|---|---|
| Crank | SRAM X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55, Rings: 32T, CNC-machined alloy, T-Type |
| Shifters | SRAM Eagle AXS Pod, 12s |
| Chain | SRAM X0 Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: Hydraulic Disc |
| Brake Levers | SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
Wheels
| Rims | e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
