Description

Build

Frame

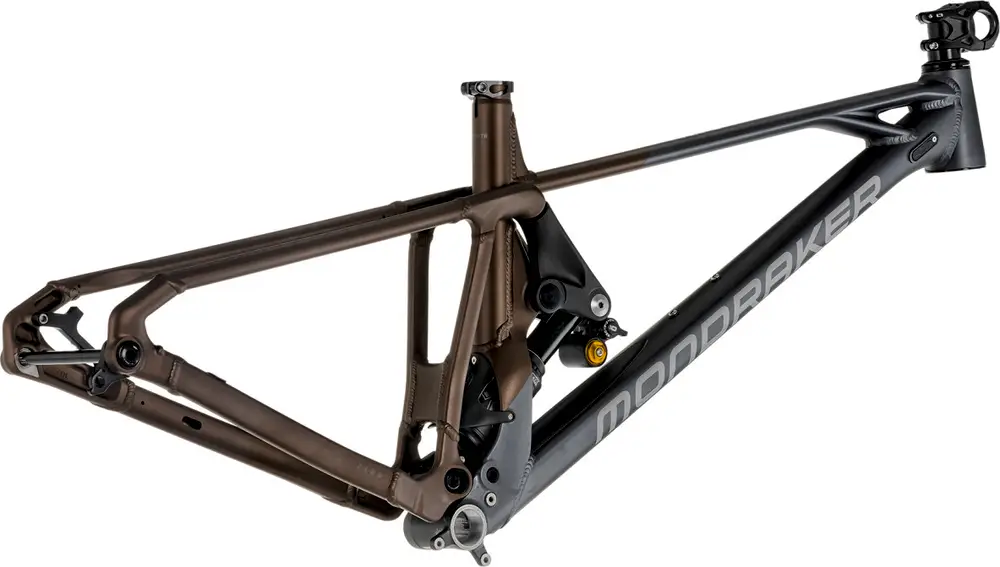

Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

BB Standard: BSA, 73mm, Threaded

Hanger Standard: UDH

Fork

hlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Travel: 160mm

Spring Type: Air

Shock

hlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

Travel: 150mm

Bottom Bracket

BSA, 73mm, threaded

Headset

Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41×30.2x7x45x45, bottom 51.9x40x8x45x45

Stem

Onoff Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm

Type: Dropper

Grips

Onoff Twin, 1lock-on, 135mm

Groupset

Rear Derailleur

SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Crank

SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55, Rings: 32T, CNC-machined alloy, X-SYNC 2

Shifters

SRAM Trigger SX Eagle, 12s, X-Actuation 1:1

Chain

SRAM SX Eagle, 12s, Powerlock

Brakes

Hydraulic Disc

Type: Hydraulic Disc

Brake Levers

SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Wheels

Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front Hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear Hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Tires

Front: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Additional information
Model

2024
