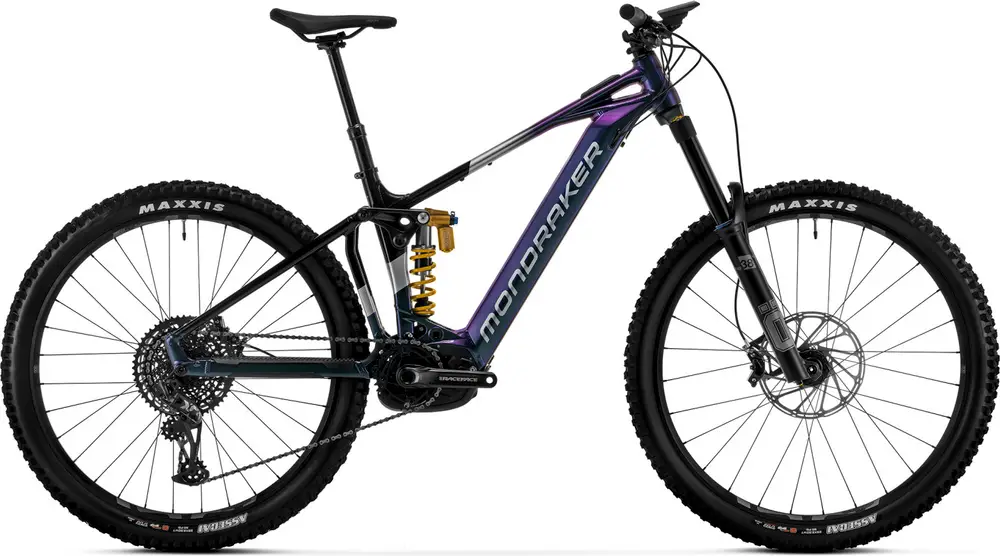

Mondraker LEVEL XR 2024 Overview
Build
| Frame | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers |
|---|---|
| Fork | hlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel: 180mm Spring Type: Air |
| Shock | hlins TTX22M.2 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings Travel: 170mm |
| Headset | Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41×30.2x7x45x45, bottom 51.9x40x8x45x45 |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM GX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: Hydraulic Disc |
| Brake Levers | SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims | e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
|---|---|
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Electric Components
| Motor | Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM |
|---|---|
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
