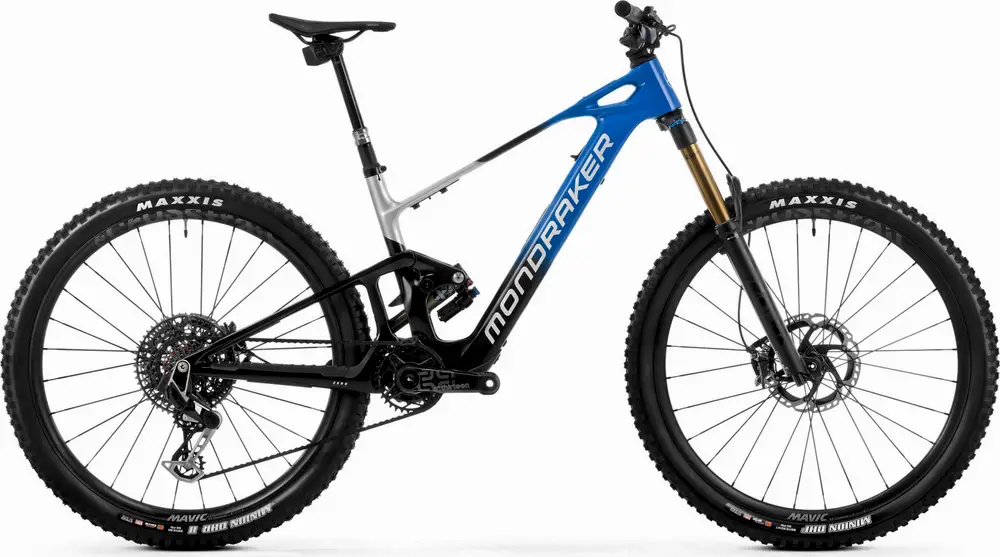

Mondraker NEAT RR SL 2024 Overview
Build
| Frame | Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Hanger Standard: UDH |
|---|---|
| Fork | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 160mm Spring Type: Air |
| Shock | Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 150mm |
| Headset | Acros custom IS52/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0, Full CNC, 31.8mm barbore |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | Fizik Terra Aidon Slim X5 |
| Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm Type: Dropper |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Groupset
| Rear Derailleur | SRAM XX Eagle AXS, T-Type, 12s |
|---|---|
| Crank | e*Thirteen TRS Race carbon ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Chain | SRAM X0 Eagle T-Type, 12s, Powerlock |
| Brakes | Front: Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin, Rear: Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin Type: Hydraulic Disc |
| Brake Levers | Shimano XTR M9120, ergonomic antiskid lever with servo wave, tool less reach adjust, |
Wheels
| Rims | Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes |
|---|---|
| Spokes | Mavic 28 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub |
| Tires | Front: Maxxis Minion DHF 29×2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
Electric Components
| Motor | TQ HPR-50 |
|---|---|
| Battery | TQ HPR-50 360Wh integrated and removable |
| Display | TQ HPR display V01 |
