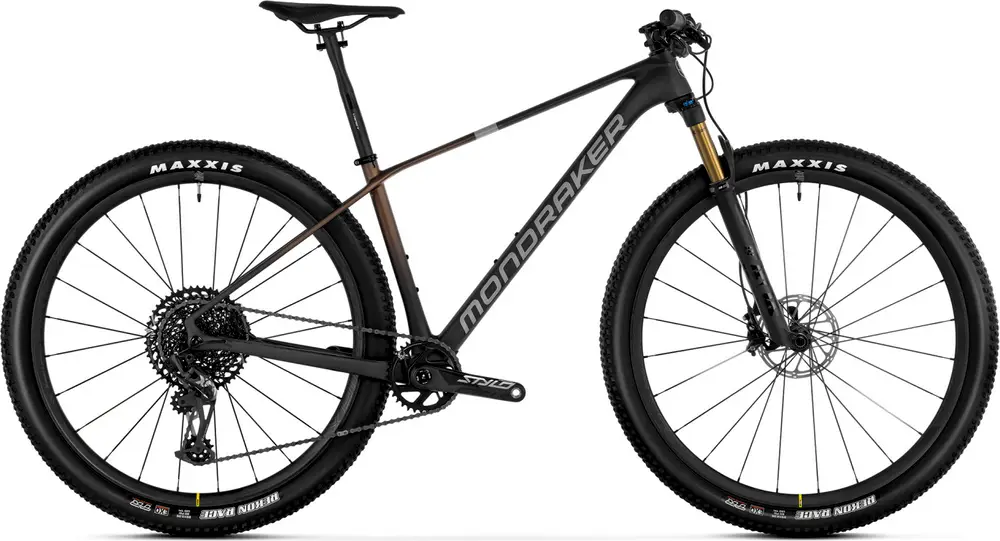

Mondraker PODIUM R 2024 Overview
Build
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff Titan tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41.8×30.5x8x45x45, bottom 51.9x40x8x45x45 |
| Stem | MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm |
| Handlebar | Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9 backsweep, 0 upsweep, 31.8mm barbore |
| Saddle | Fizik Antares R7 |
| Seatpost | Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm Type: Rigid |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2 |
|---|---|
| Crank | SRAM Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52, Rings: 34T, CNC-machined alloy, X-SYNC 2 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Level Silver 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level Silver 2P Stealth, flatmount 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: Hydraulic Disc |
| Brake Levers | SRAM Level Silver, tools-free reach adjust, lever pivot bearings |
Wheels
| Rims | Mavic CrossMax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic straight-pull double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead, Rear: Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead |
