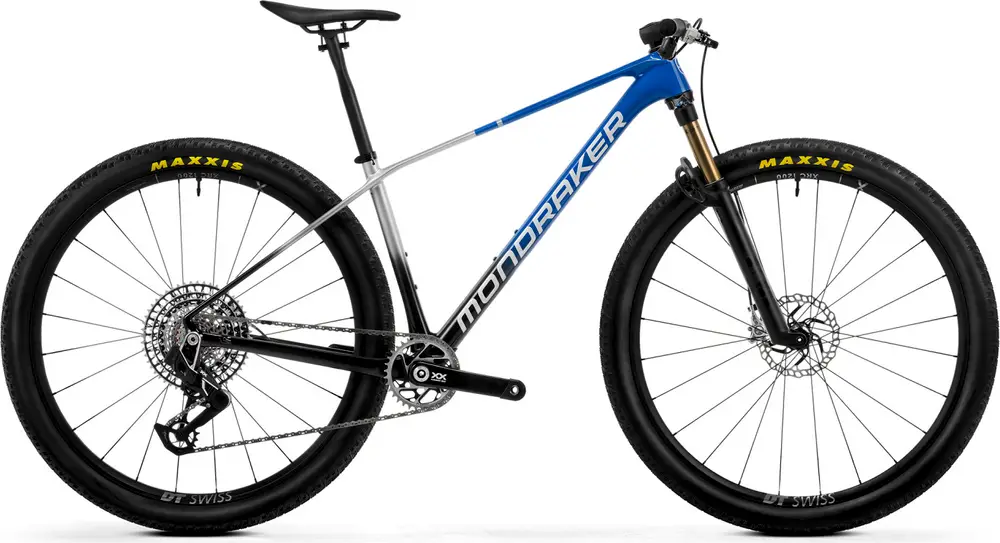

Mondraker PODIUM RR SL 2024 Overview
Build
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible, BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH |
|---|---|
| Fork | Fox 32 Step Cast Float SL Factory Kashima, GRIP SL, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm |
| Headset | Onoff IS42/IS52, 1-1/8″, 1.5″ head tube, sealed bearings |
| Stem | OnOff S9 Integrated Carbon Handlebar, width: 760mm, 8 Backsweep, 0 Upsweep, S size: 55mm length -12 rise, M size: 55mm length -12 L size: 65mm length -14 rise, XL size: 75mm length -15 rise |
| Saddle | Fizik Vento Argo 00 Carbon |
| Seatpost | Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm Type: Rigid |
| Grips | Ergon GXR |
Groupset
| Rear Derailleur | SRAM XX SL Eagle AXS, T-Type, 12s |
|---|---|
| Crank | SRAM XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, CNC-machined alloy, X-SYNC 2 |
| Shifters | SRAM Eagle AXS Pod Ultimate, 12s |
| Chain | SRAM XX SL Eagle T-Type, 12s, Powerlock |
| Brakes | Front: Trickstuff Piccola Carbon, 7075 T6 CNC alloy caliper. 160mm Galfer Wave Centerlock rotor., Rear: Trickstuff Piccola Carbon, 7075 T6 CNC alloy caliper. 160mm Galfer Wave Centerlock rotor. Type: Hydraulic Disc |
| Brake Levers | Trickstuff Piccola Carbon, 7075 T6 CNC alloy body with carbon lever, lever pivot bearings. |
Wheels
| Rims | DT Swiss XRC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes |
|---|---|
| Spokes | DT aerolite Straightpul |
| Front Hub | DT 180, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 180, Boost 12x148mm, 36T Ratchet EXP system, Center lock, XD freehub |
| Tires | Front: Maxxis Aspen ST 29×2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead, Rear: Maxxis Aspen ST 29×2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead |
