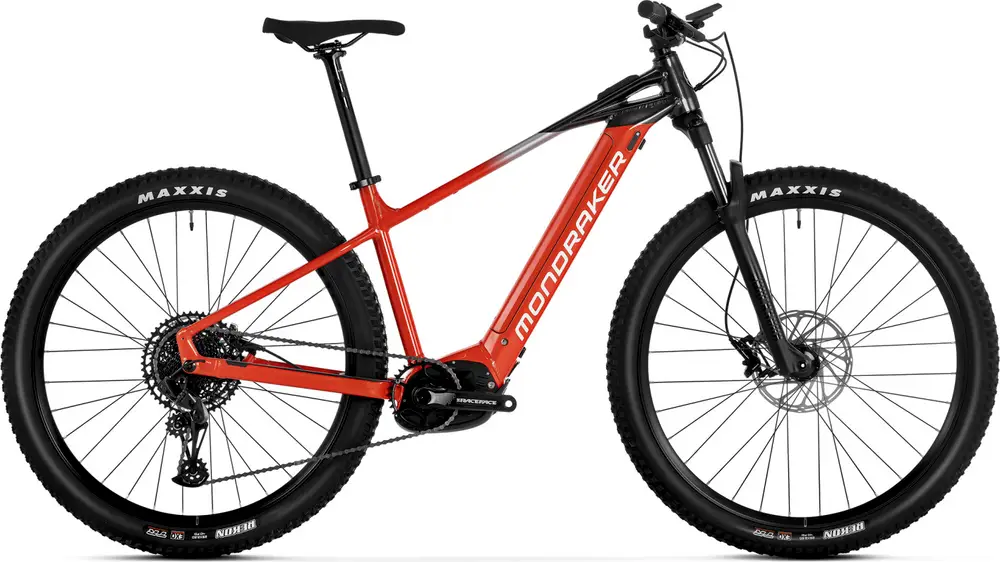

Mondraker PRIME G4 2024 Overview
Build
| Frame |
Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor Colors:Â Black / Grey; Red / Gray/silver |
|---|---|
| Fork |
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload Travel:Â 120mm Spring Type:Â Air |
| Headset |
Onoff Saturn tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41×30.2x7x45x45, bottom 51.9x40x8x45x45 |
| Stem |
Onoff Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore |
| Handlebar |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle |
MDK ebike black |
| Seatpost |
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm Type:Â Rigid |
| Grips |
Onoff Twin, 1lock-on, 135mm |
Groupset
| Rear Derailleur |
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|---|---|
| Crank |
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters |
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Chain |
SRAM SX Eagle, 12s, Powerlock |
| Brakes |
Front: SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
Wheels
| Rims |
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|---|---|
| Spokes |
Mavic J-bend double butted, contactless lacing |
| Front Hub |
Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Tires |
Front: Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Electric Components
| Motor |
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM |
|---|---|
| Battery |
Bosch Powertube 625Wh |
| Display |
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
