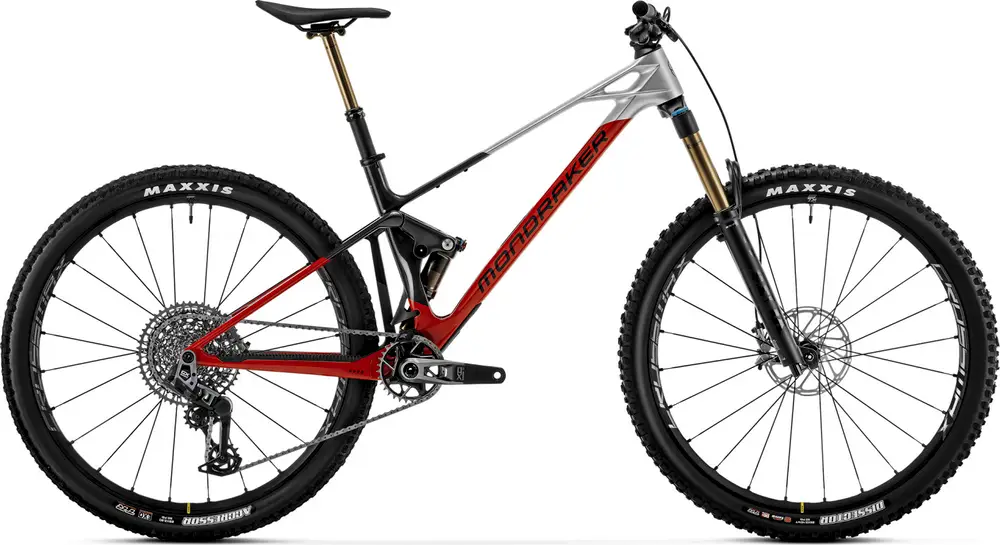

Mondraker RAZE CARBON RR 2024 Overview
Build
| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. BB Standard: BSA, 73mm, Threaded Hanger Standard: UDH Color: Red / Carbon/silver |
|---|---|
| Fork | Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offsete. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 150mm Spring Type: Air |
| Shock | Fox Float Factory Kashima EVOL, 205×57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Travel: 130mm |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | Fizik Vento Argo X5 |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
|---|---|
| Crank | SRAM X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55, Rings: 32T, CNC-machined alloy, T-Type |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | Front: SRAM Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads Type: Hydraulic Disc |
| Brake Levers | SRAM Level Bronze, tools-free reach adjust, lever pivot bushings |
Wheels
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
|---|---|
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
