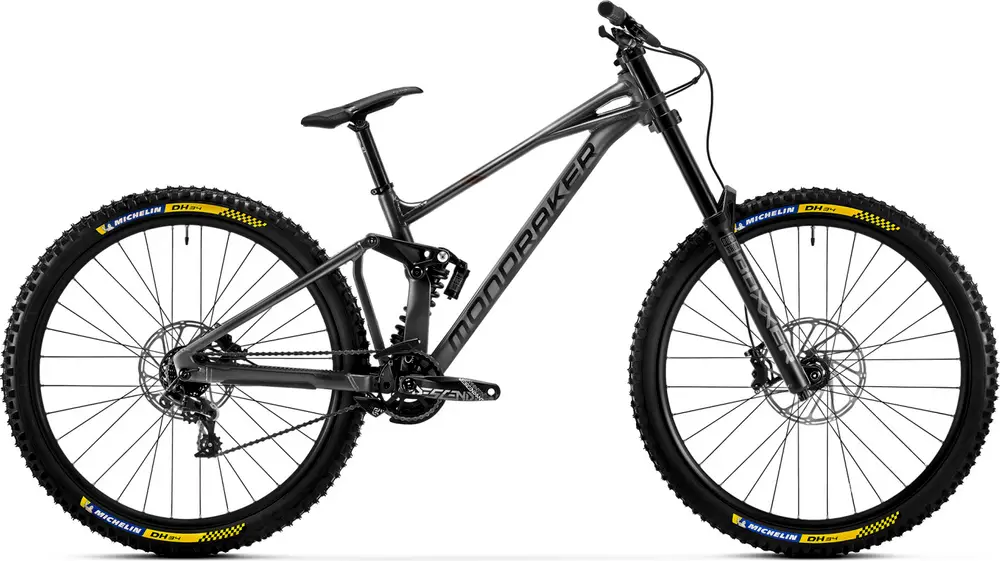

Mondraker SUMMUM 2024
Compare Wishlist

Mondraker Summum 2024

Sku: 2024162894

US $2,213

Available in stock

*
Compare Wishlist
Brand:
Description

Mondraker SUMMUM 2024 Overview

Build

Frame

Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

BB Standard: BSA, 83mm, Threaded

Fork

Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8 steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload

Travel: 200mm

Spring Type: Air

Shock

Rock Shox Super Deluxe Coil Select R, 225x70mm. LNM ST B1, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings

Travel: 200mm

Spring Type: Coil

Bottom Bracket

SRAM DUB BSA, sealed bearings, 83mm

Headset

Onoff Mercurium 1.5 ZS for 1-1/8 steerer tube, 41×30.15x7x45x45 ACB sealed bearings, geometry kit cups, external diameter 56mm

Stem

Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore

Saddle

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

Seatpost

SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment

Type: Rigid

Grips

Onoff Twin, 1lock-on, 135mm

Groupset

Rear Derailleur

SRAM GX DH, 7s, medium cage, X-actuation 1:1

Front Derailleur

E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Crank

SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 565, Rings: 34T, steel, X-SYNC

Shifters

SRAM trigger GX DH 7s, X-actuation 1:1

Chain

SRAM PC1110 11s, Powerlock

Brakes

Front: SRAM DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Type: Hydraulic Disc

Brake Levers

SRAM DB8, tool reach adjust, lever pivot bushings

Wheels

Rims

Mavic Deemax BikePark 29, 30mm internal width, 32 holes

Spokes

Mavic 32 steel flat spokes

Front Hub

Mavic Boost 20x110mm, IS 6 bolts

Rear Hub

Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub

Tires

Front: Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
