Build

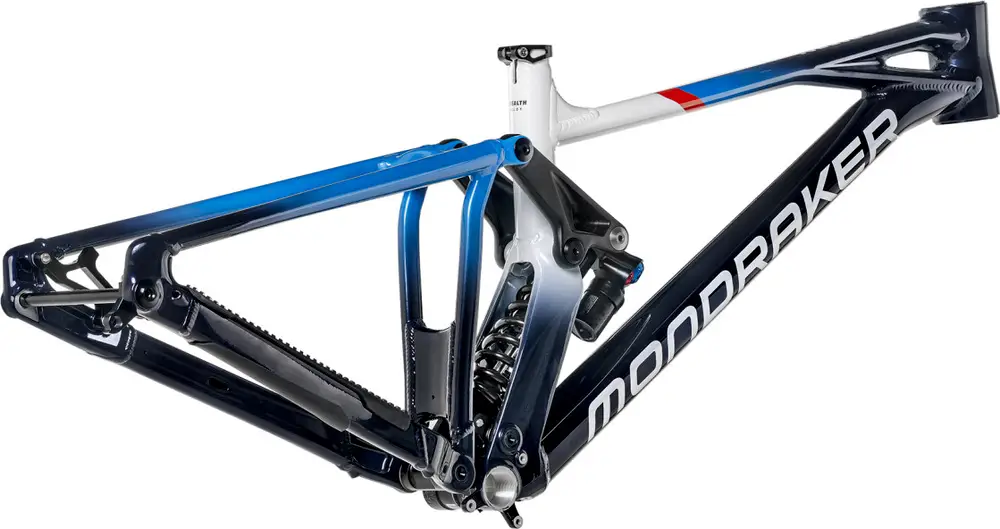

| Frame | Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit BB Standard: BSA, 83mm, Threaded |
|---|---|
| Fork | Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8 steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload Travel: 203mm Spring Type: Air |
| Shock | Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings Travel: 200mm Spring Type: Coil |
| Bottom Bracket | BSA, 83mm, threaded |
| Headset | Onoff Mercurium 1.5 ZS for 1-1/8 steerer tube, 41×30.15x7x45x45 ACB sealed bearings, geometry kit cups, external diameter 56mm |
| Stem | Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides |
| Seatpost | SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment Type: Rigid |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX DH, 7s, medium cage, X-actuation 1:1 |
|---|---|
| Front Derailleur | E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |
| Crank | SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 565, Rings: 34T, steel, X-SYNC |
| Shifters | SRAM trigger GX DH 7s, X-actuation 1:1 |
| Chain | SRAM PC1110 11s, Powerlock |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Brake Levers | SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
Wheels
| Rims | e*thirteen LG1 Plus DH, IW29 29″ Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Tires | Front: Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
