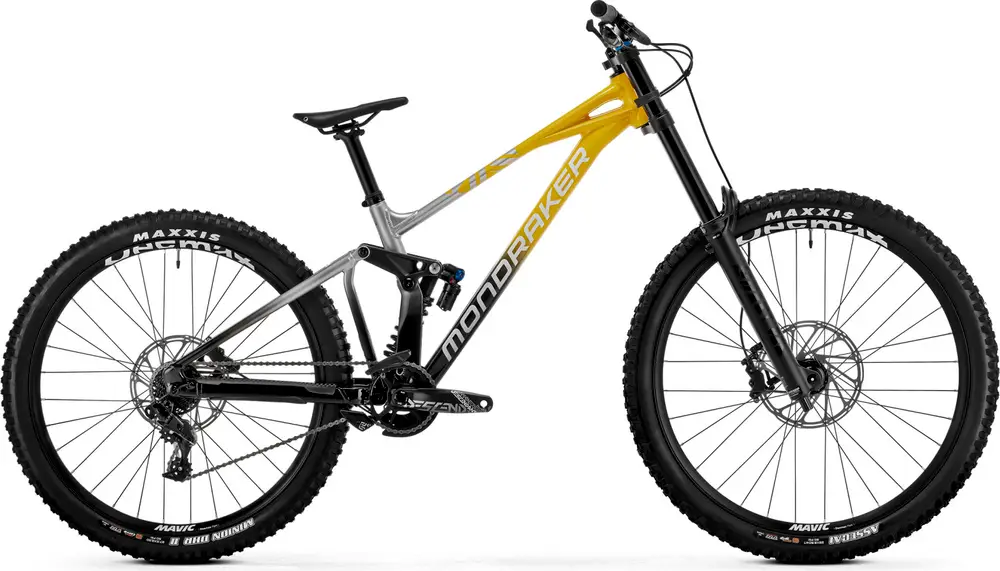

Mondraker SUMMUM R Mullet 2024 Overview
Build
| Frame | Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit BB Standard: BSA, 83mm, Threaded |
|---|---|
| Fork | Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8 steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload Travel: 203mm Spring Type: Air |
| Shock | Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings Travel: 200mm Spring Type: Coil |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 83mm |
| Headset | Onoff ZS56/ZS56, 1-1/8″, 1-1/8″ steerer tube, 42x30x7x45x45 ACB sealed bearings, geometry kit cups, external diameter 62mm |
| Stem | Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer |
| Handlebar | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | Ergon SM10 DH Black |
| Seatpost | Onoff S3 DH Alloy, diameter 31.6mm, length 300mm Type: Rigid |
| Grips | Onoff Beehive, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX DH, 7s, medium cage |
|---|---|
| Front Derailleur | e*Thirteen Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |
| Crank | SRAM Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 565, Rings: 34T, steel, X-SYNC |
| Shifters | SRAM trigger GX DH 7s, X-actuation 1:1 |
| Chain | SRAM PC1110 11s, Powerlock |
| Brakes | Front: SRAM DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM DB8, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: Hydraulic Disc |
| Brake Levers | SRAM DB8, tool reach adjust, lever pivot bushings |
Wheels
| Rims | Mavic Deemax BikePark 29, 30mm internal width, 32 holes |
|---|---|
| Spokes | Mavic 32 steel flat spokes |
| Front Hub | Mavic Boost 20x110mm, IS 6 bolts |
| Rear Hub | Mavic 12x157mm, ID360 freewheel, sealed bearings, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 27”5×2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
